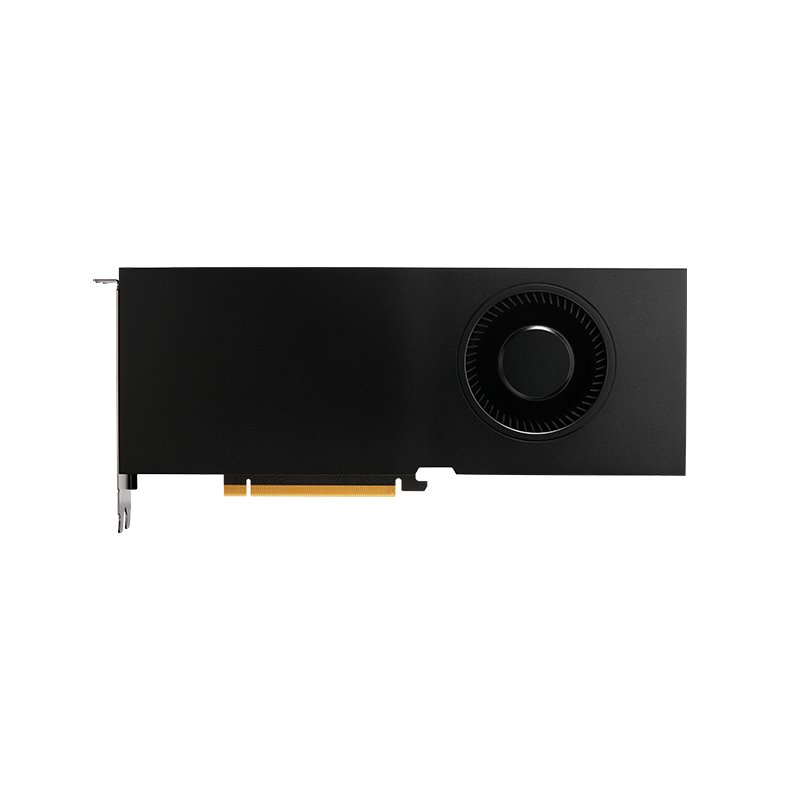

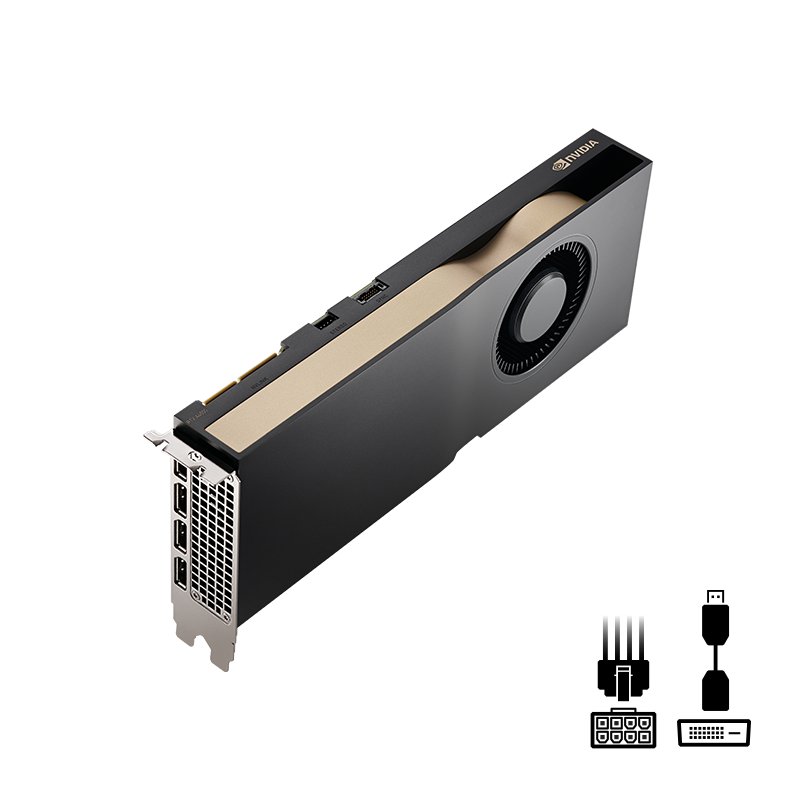

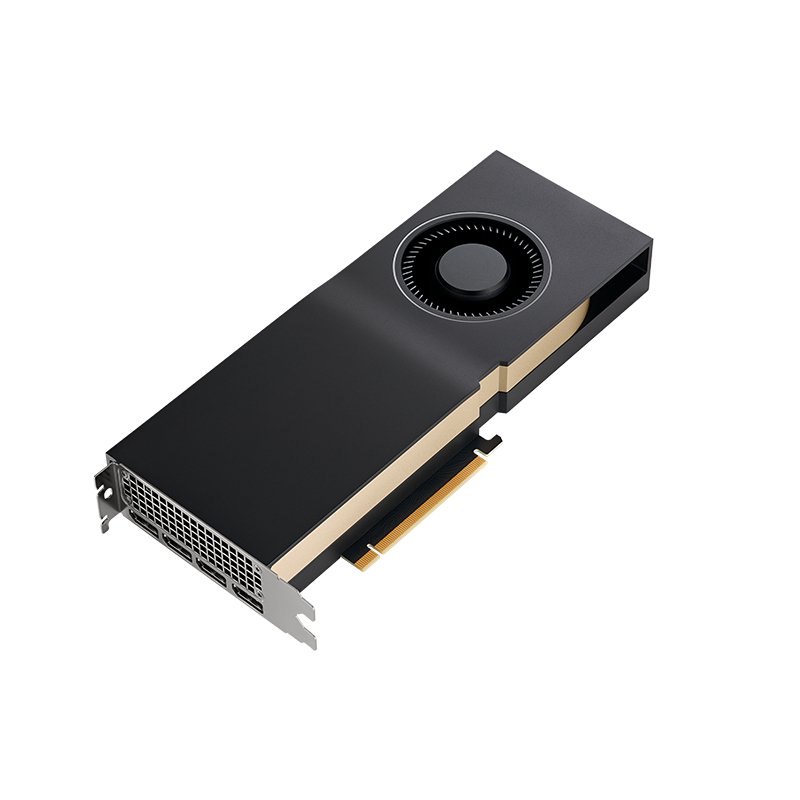

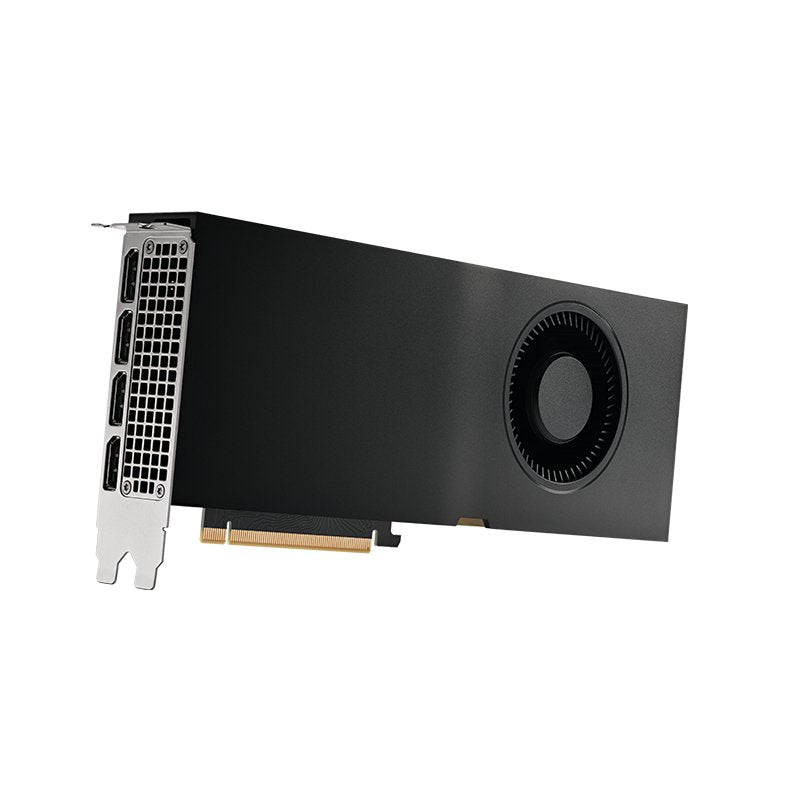

RTX A4500: Nvidia PNY RTX A4500 20GB GDDR6 PCIe 4.0
Powerful Performance for Professionals
The NVIDIA RTX A4500 delivers the power, performance, capabilities, and reliability professionals need to do more. Powered by latest generation of NVIDIA RTX technology, combined with 20GB of ultra-fast GPU memory, the A4500 provides amazing performance with your favorite applications and the capability to work with larger models, renders, datasets, and scenes with higher fidelity and greater interactivity, taking your work to the next level.
With the introduction of the NVIDIA Ampere architecture, the next generation of NVIDIA RTX became available to millions of professionals. Featuring enhanced real-time ray tracing, accelerated AI, and advanced graphics and compute capabilities, the NVIDIA Ampere architecture enables artists, designers, engineers, and scientists to create tomorrow, today. And as the adoption of RTX technology continues to grow, with over 70 of the world's leading professional applications now accelerated by RTX technology, professionals are empowered to design, build, and entertain unlike ever before.
|Architecture||NVIDIA Ampere Architecture|
|Process Size||8nm | Samsung|
|Die Size||628.4 mm2|
|Single Precision Performance||23.7 TFLOPS|
|RT Core Performance||46.2 TFLOPS|
|Tensor Performance||182.2 TFLOPS|
|GPU Memory||20GB GDDR6 with ECC|
|Memory Bandwidth||640 GB/sec|

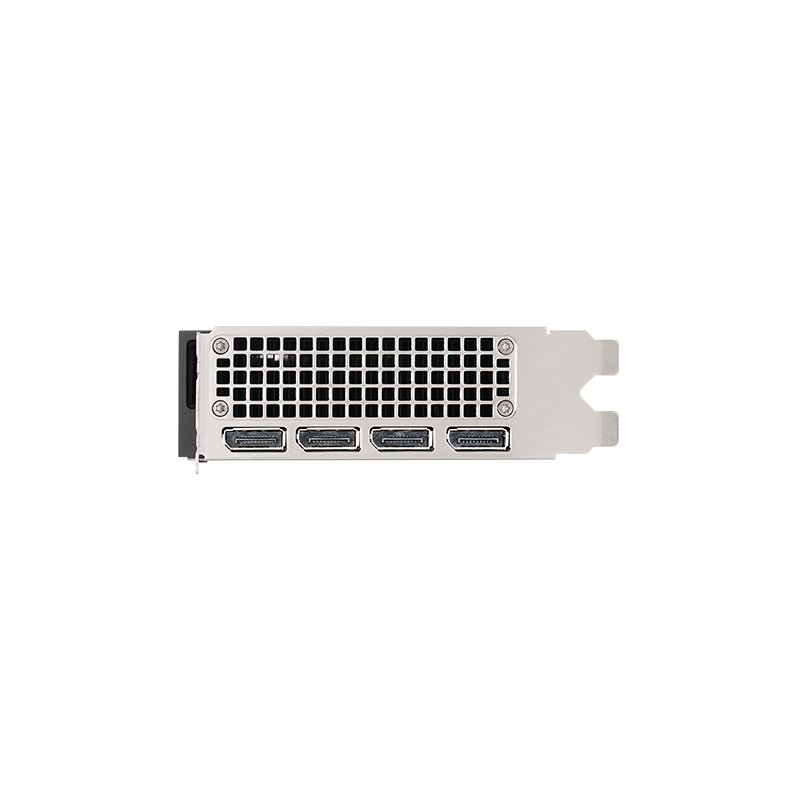

|Display Connectors||4x DisplayPort 1.4a|
|NVENC | NVDEC||1x | 2x (+ AV1 decode)|
|System Interface||PCI Express 4.0 x16|
|Form Factor||4.4" H x 10.5" L Dual Slot|
|Thermal Solution||Active Fansink|
|Maximum Power Consumption||200 W
NVIDIA Quadro and RTX Power Guidelines
|Power Connector||1x 8-pin PCIe|
|Max Digital Resolution||7680 x 4320 x36 bpp at 60 Hz
NVIDIA Quadro and RTX Display Resolution Support
|NVIDIA 3D Vision and 3D Vision Pro||Optional 3-pin mini DIN connector bracket|
|Frame Lock||Compatible with NVIDIA Quadro Sync II|
|NVLink||2-way low profile (2-slot and 3-slot bridges) connects 2x NVIDIA RTX A4500|
|NVLink Interconnect||112.5 GB/sec bidirectional|
Available Accessories (contact us if we don't have it in stock)

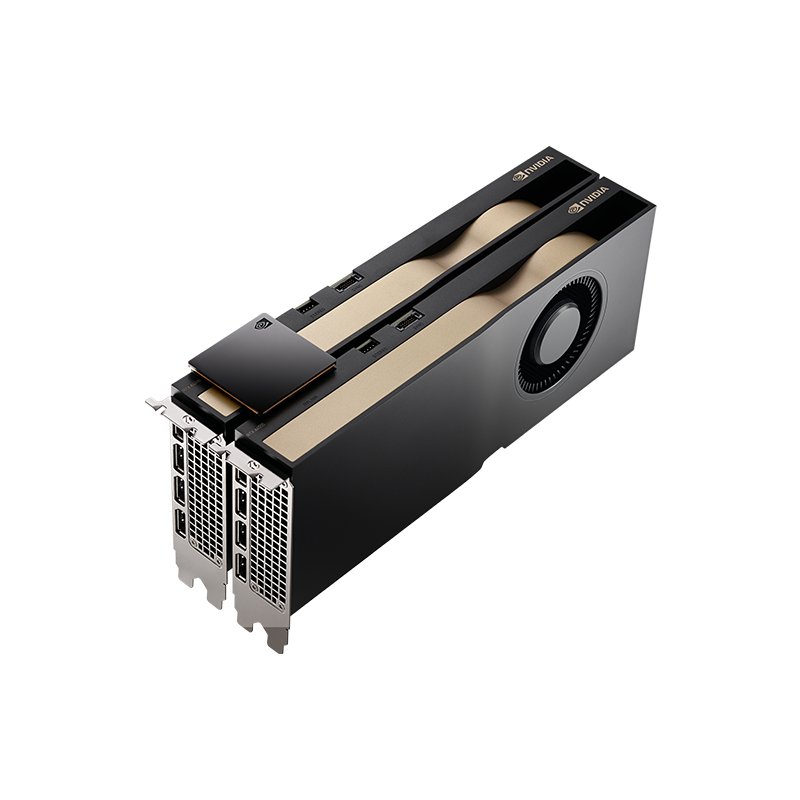

- RTXA6000NVLINK-KIT provides an NVLink connector for the RTX A4500 (or RTX A6000 and RTX A5000) suitable for standard PCIe slot spacing motherboards, effectively fusing two physical boards into one logical entity with 14336 CUDA Cores, 448 Tensor Cores, 112 RT Cores, and 40 GB of GDDR6 ECC memory, with a bandwidth of 112.5 GB/Sec. Order PN RTXA6000NVLINK-KIT when ultimate performance and capabilities are required with two RTX A4500 boards (application support required).
- RTXA6000NVLINK-3S-KIT offers an NVLink connector for the RTX A4500 (or RTX A6000 and RTX A5000) compatible with motherboards featuring wider PCIe slot spacing. All other features and benefits are identical to the standard slot spacing version.
- DP-HDMI-THREE-PCK connects the NVIDIA RTX A4500 to HDMI displays at resolutions up to 4K with PNY Part Number DP-HDMI-THREE-PCK. The three included DisplayPort to HDMI adapters are recommended by NVIDIA, provide outstanding image quality, and are built to professional standards.
- DP-HDMI-SINGLE-PCK connect the NVIDIA RTX A4500 to an HDMI display at resolutions up to 4K with PNY Part Number DP-HDMI-SINGLE-PCK. The included DisplayPort to HDMI adapter is recommended by NVIDIA, provides outstanding image quality, and is built to profession
