Lian Li Strimer Plus V2 12VHPWR Cable - 12 Light Guides (162 LED) 12+4 Pin ATX 3.0 PW16-12PV2

Lian Li Strimer Plus V2 12VHPWR Extension Cable - 12 Light Guides (162 LED) 12+4 Pin (PW16-12PV2) aRGB PCIe Cables (2023 new release)

Overview

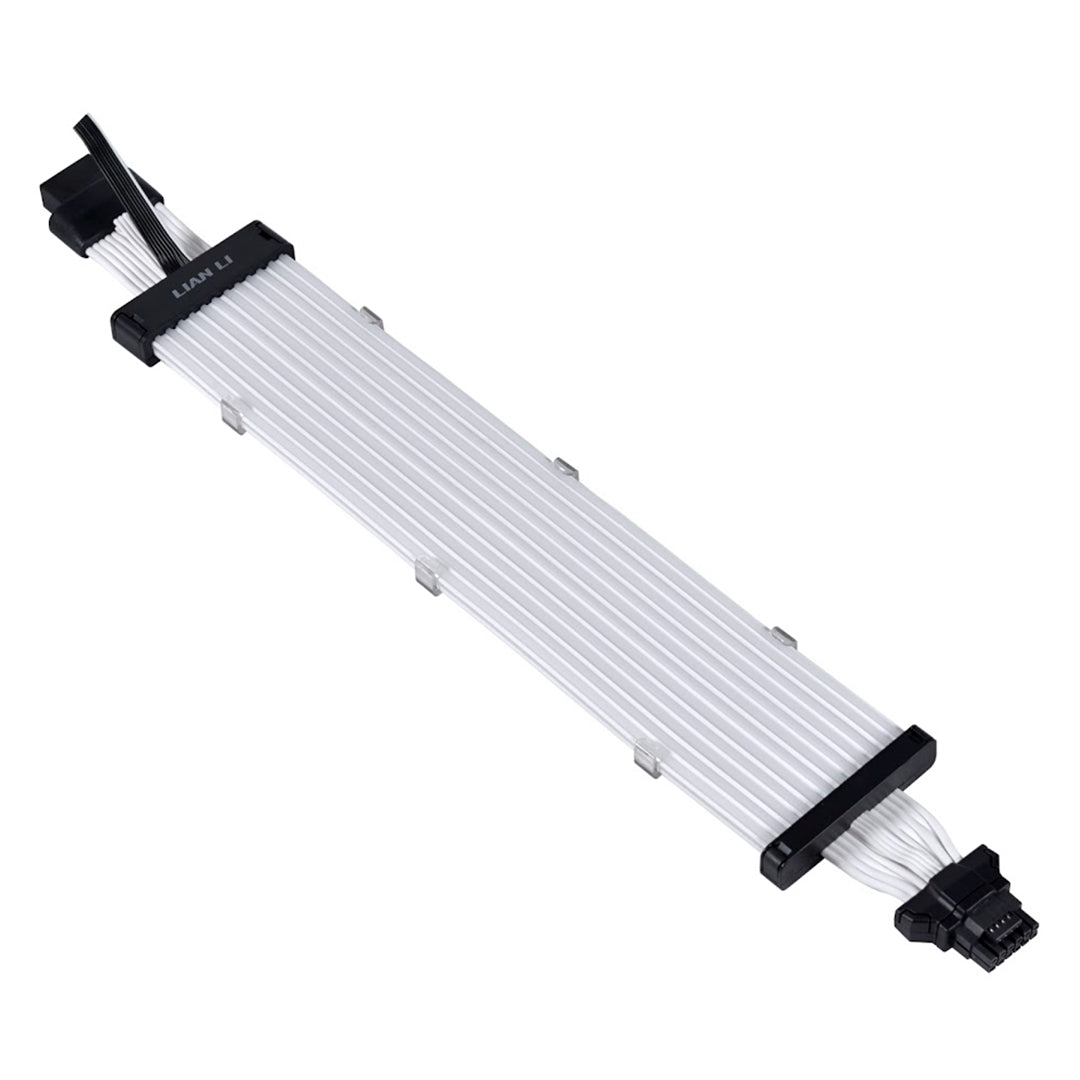

The Lian Li Strimer Plus V2 12VHPWR brings a unique and vibrant addition to your PC build. This extension cable features 12 light guides and supports up to 600W with a 12VHPWR connector. The cable is 320mm in length, 162 LEDs, and has a 12+4 Pin 12VHPWR male connector on one end and a 12+4 Pin 12VHPWR female connector on the other end.

The Strimer Plus V2 has been improved for increased flexibility and better illumination. Lian Li changed the material of the aRGB covers from PVC to TPE, which increases flexibility. along with a slimmer cable stack, the height of the aRGB layer plus cable layer is a mere 8mm (compared to the previous 11mm). Additionally, a side light diffuser has been added to allow color to shine out of the sides of the cables instead of just the front, adding brightness and more options in terms of configuration and placement of the cable.

The Strimer Plus V2 is controlled via Lian Li's new software, L-Connect 3, which offers a high level of customization similar to per-key aRGB lighting on mechanical keyboards. This allows you to control each light channel's color and choose from various effects, such as rainbow or ping pong.

Importantly, you should take into account the compatibility of these extension cables with your existing PSU and GPU. Some PSU manufacturers, like Seasonic and EVGA, have specific requirements for using their proprietary cables to avoid warranty issues. It is recommended to check with your PSU and GPU manufacturers for compatibility before using this item.

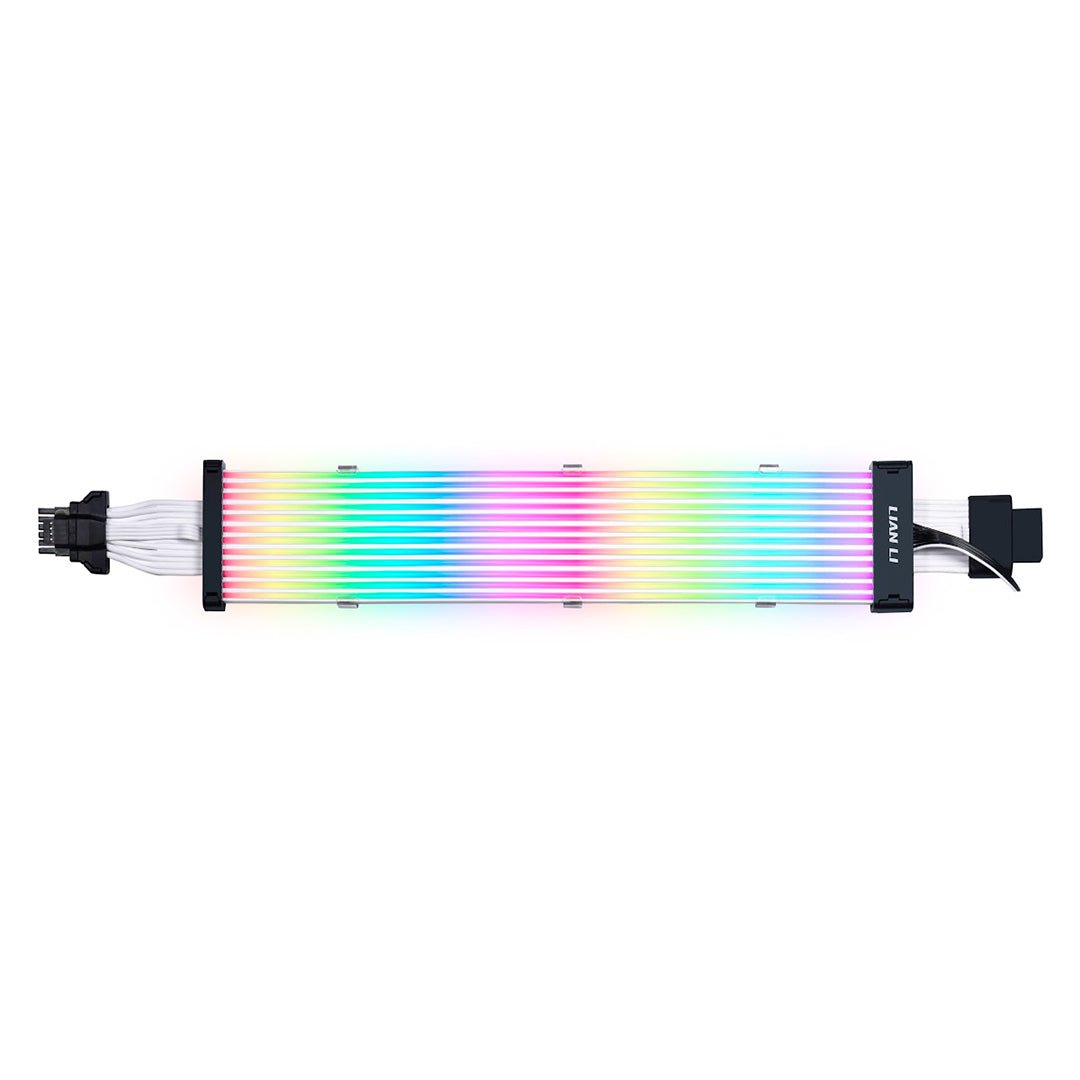

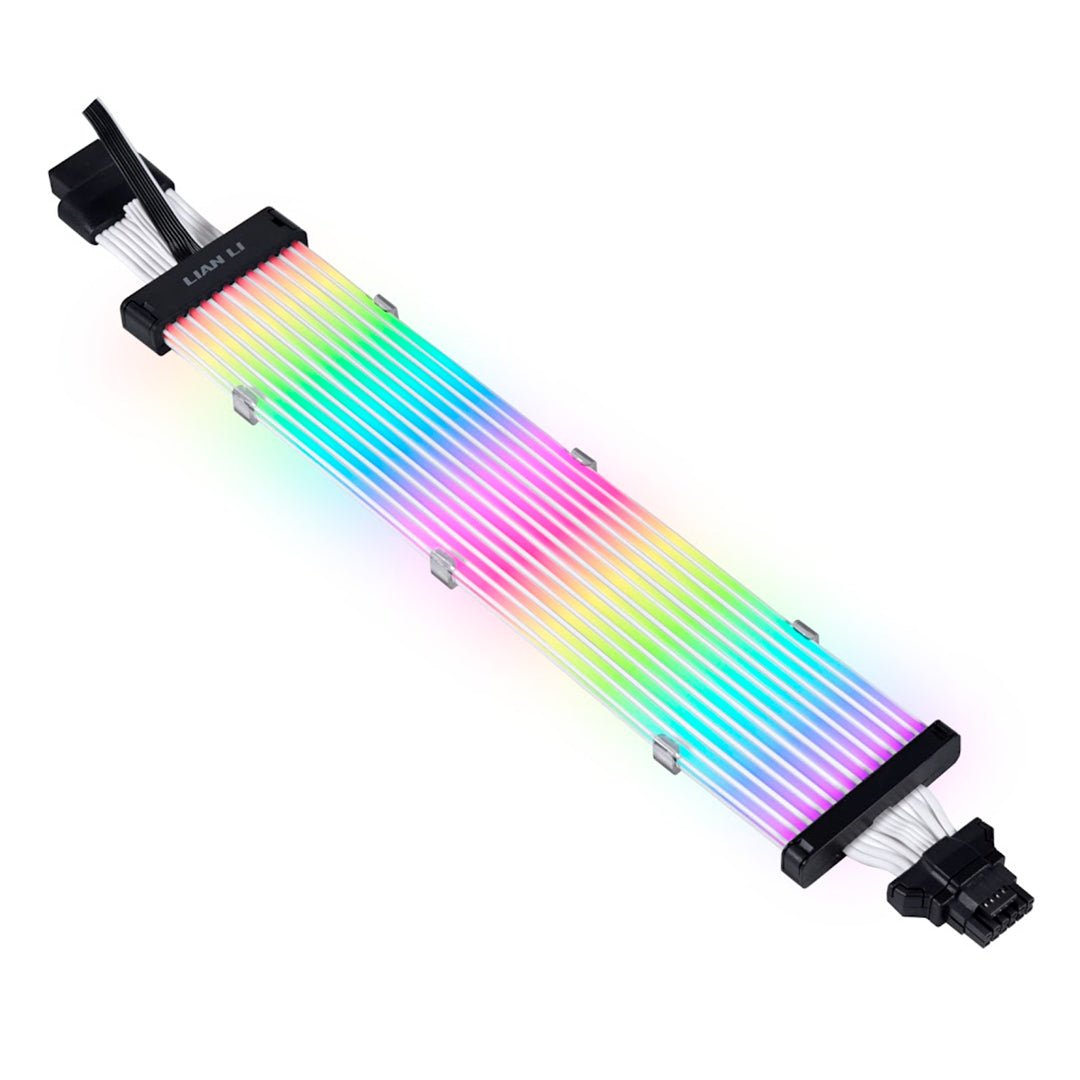

Next Level of Brightness

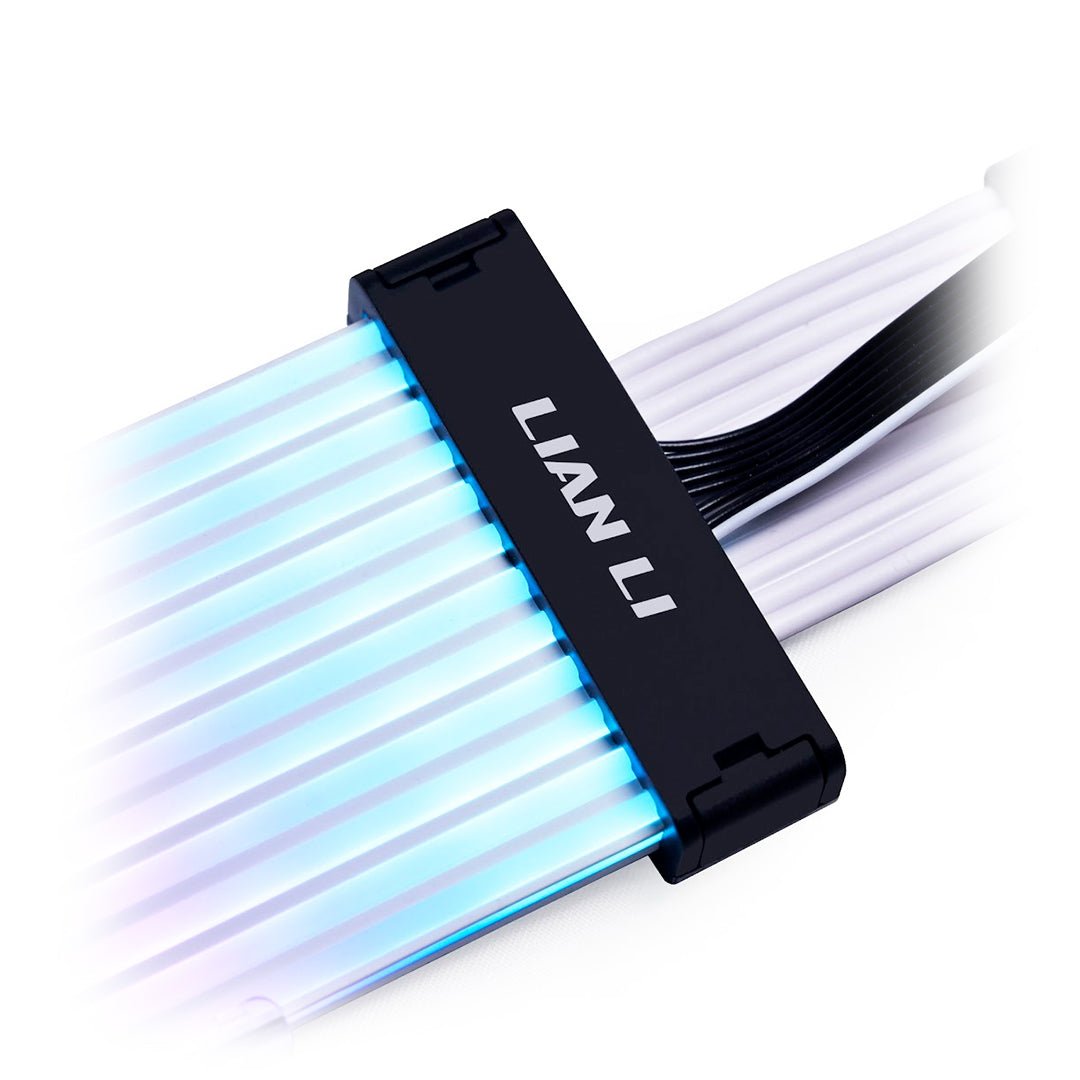

Introducing a new side light strip, brightening Strimer Plus V2 in different ways. Allocating a total of 162 LEDs evenly to glow your build with complex lighting effects. Illuminate the Strimer Plus V2 with a sleek design with reduced lighting strips' width of 2.1mm. The side light strip looks awesome!

High-Quality Design

A well-engineered product that glows with quality. UV resistant coating helps minimize dust and prevent oxidation. Stabilizing clips hold the cables and aRGB zone tightly and a single layer cable ensures flexibility by reducing the cable thickness. The high-end silicone (TPE) cable improves temperature endurance from 105 C to 130 to 150 C.

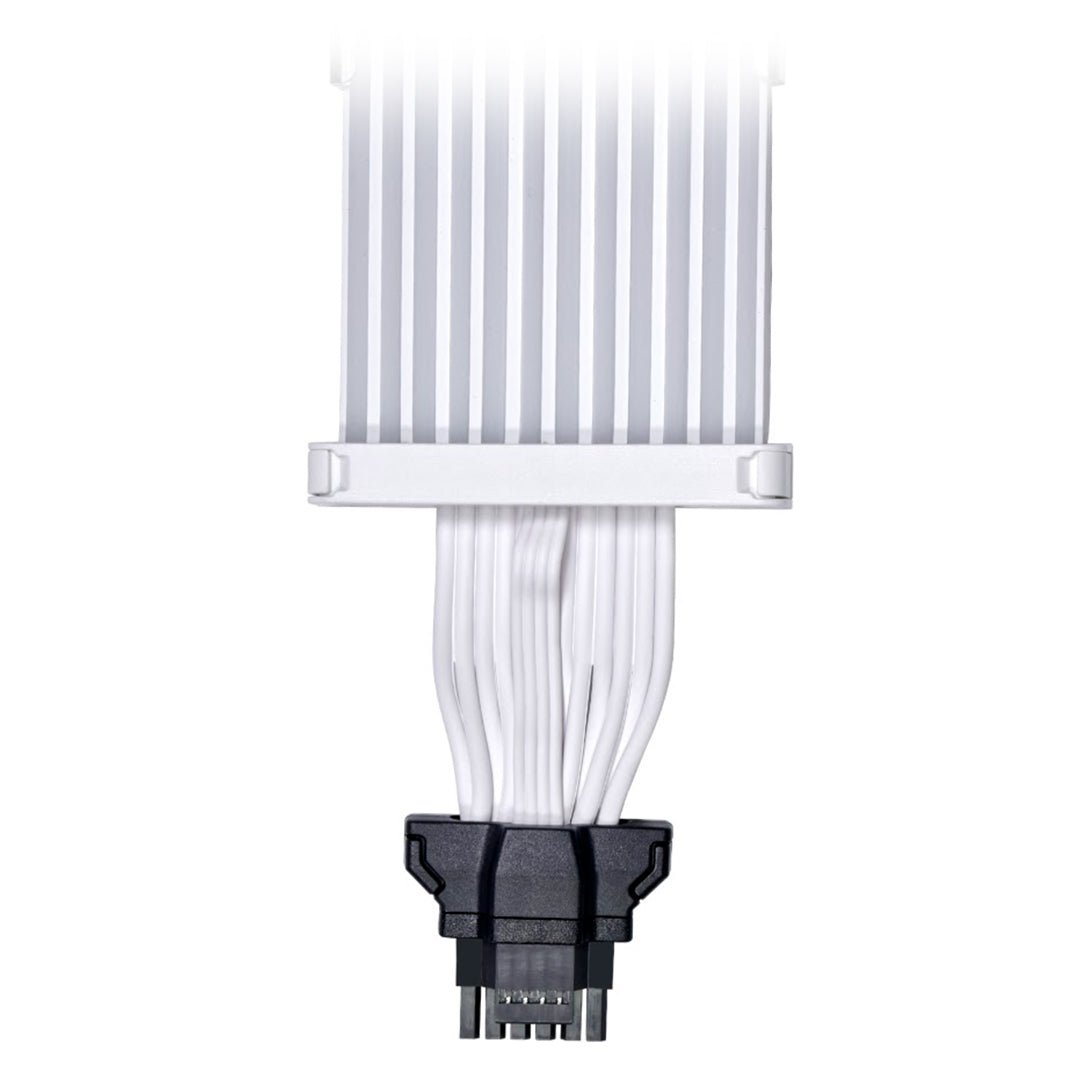

To avoid overheating, this 12VHPWR connector features a custom design that bonds the cable and terminal and copper thickness that has been increased to 0.24mm for current stability and an added protective insulation layer between the terminals to avoid power shortage.

Flexible Clearance

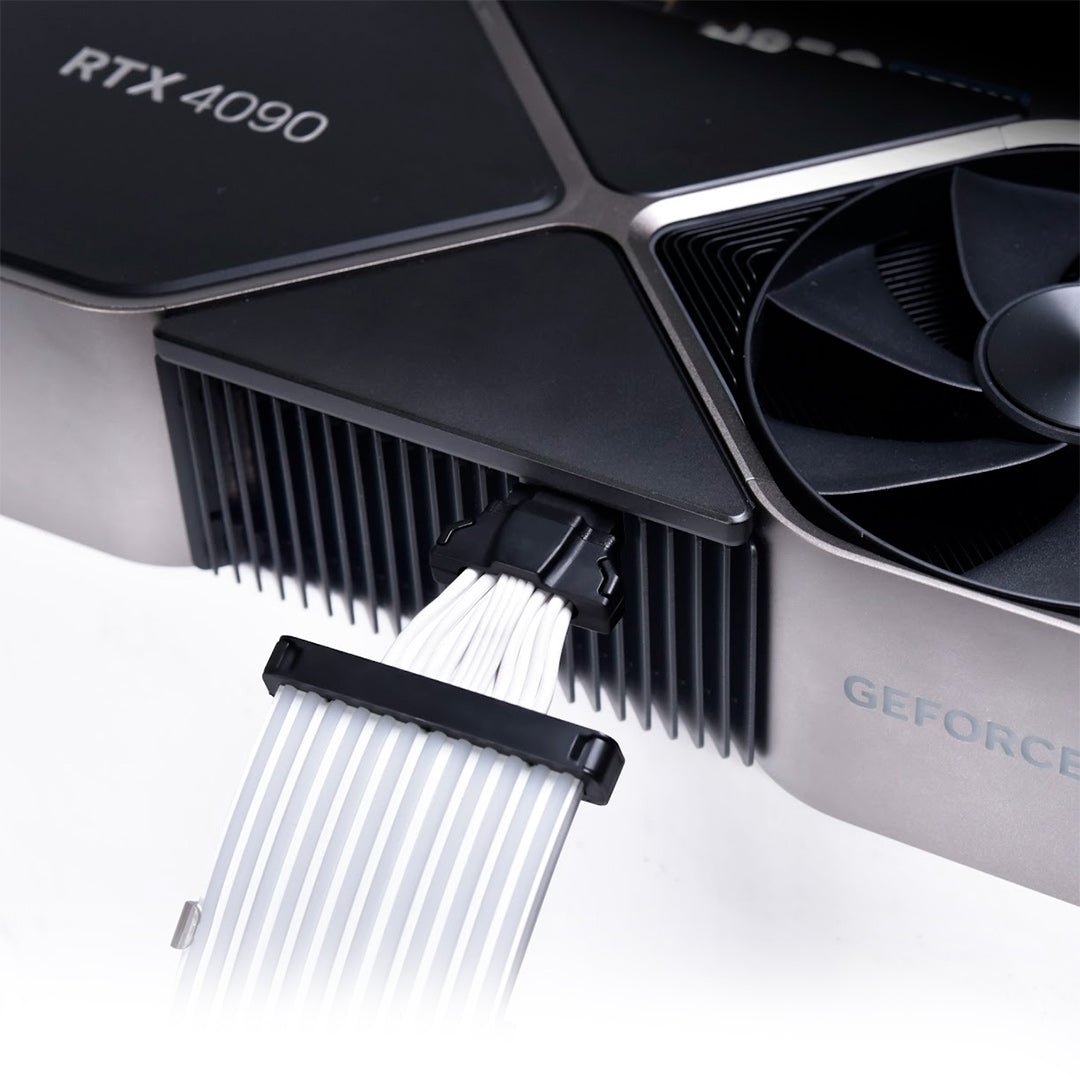

A minimum of 28mm of clearance is required when installing the 12VHPWR connector. For situations where less clearance is available, the plastic shield can be removed to reduce the required clearance to 23mm.

Match the Color of Your Build

Includes extra white strips to match the hardware color inside your PC.

aRGB Synchronization with the Motherboard

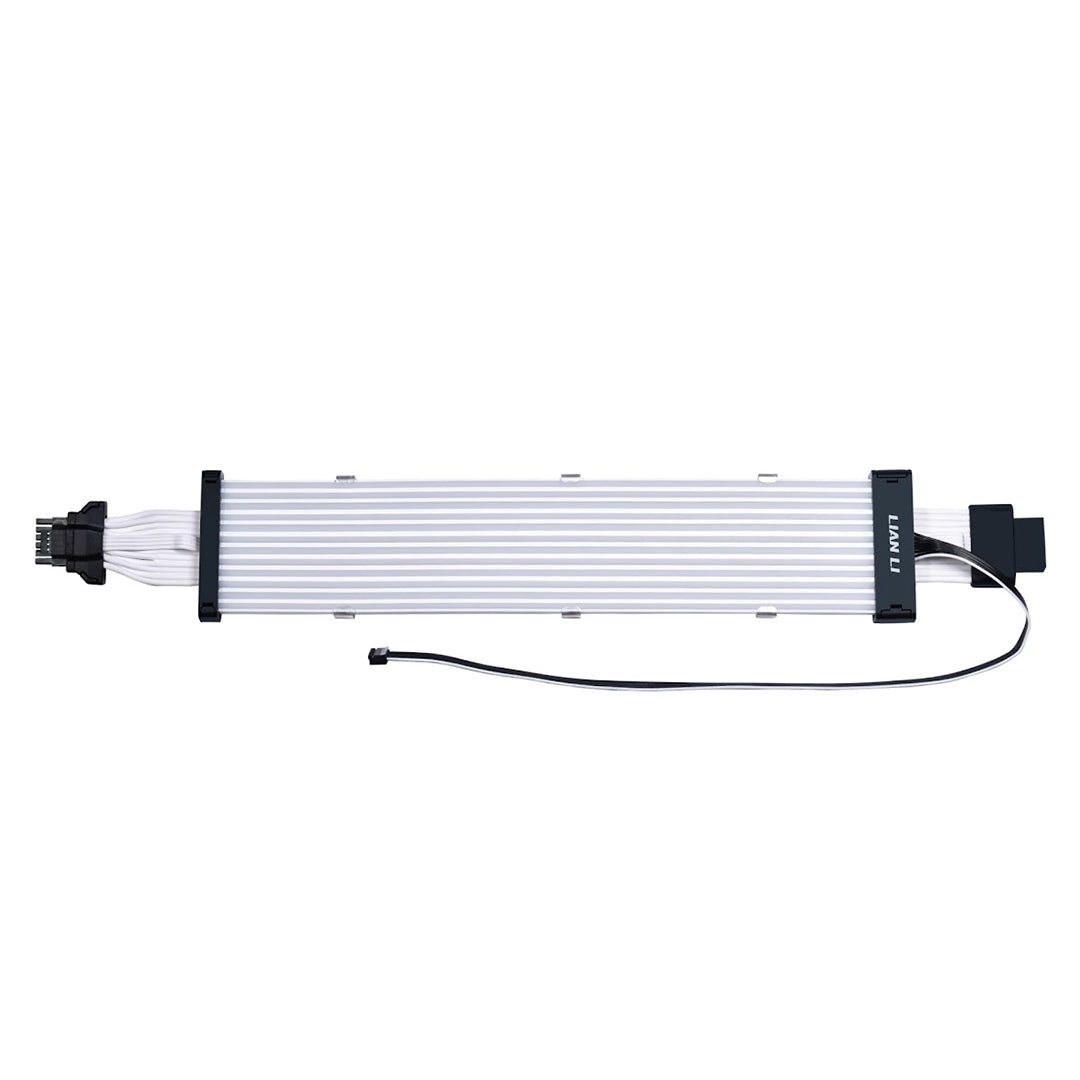

The cable has a 3-pin 5V aRGB adapter to connect to the motherboard directly. Be sure to lower 50% of the brightness when applying static white.

Specifications

• Model: PW16-12PV2
• Female Connector: 12+4pin 12VHPWR

• Male Connector: 12+4pin 12VHPWR
• Dimensions: 381mm (L) X 56.4mm (D) X 8mm (H)
• Material: Silicone/TPE
• Cable Length: 320mm
• Gauge: 16AWG
• Light Guides: 12
• Number of LEDs: 162
• Accessories: Cable adapter for motherboard aRGB 3-PIN
• Warranty: 1 year
