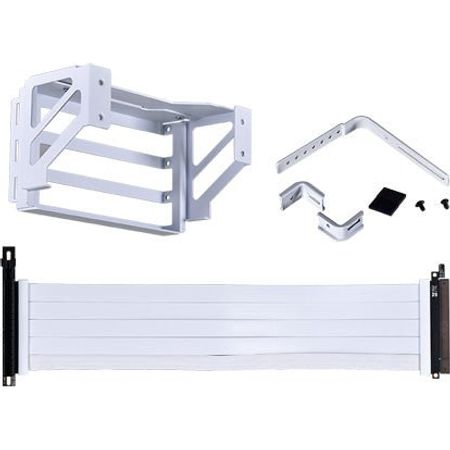

Dynamic EVO Upright GPU Kit WHITE

• Upright graphics card accessories for O11D EVO
• New mounting angle for GPU opens room for unrestricted chimney-style configuration.

TWO MOUNTING WAYS WORK ON BOTH MODES

Both HDD tray panel and fan bracket support to mount upright GPU kit on normal or reverse mode.

HDD Tray Panel Scenario:

FAN BRACKET SCENARIO (120mm Fan x3):

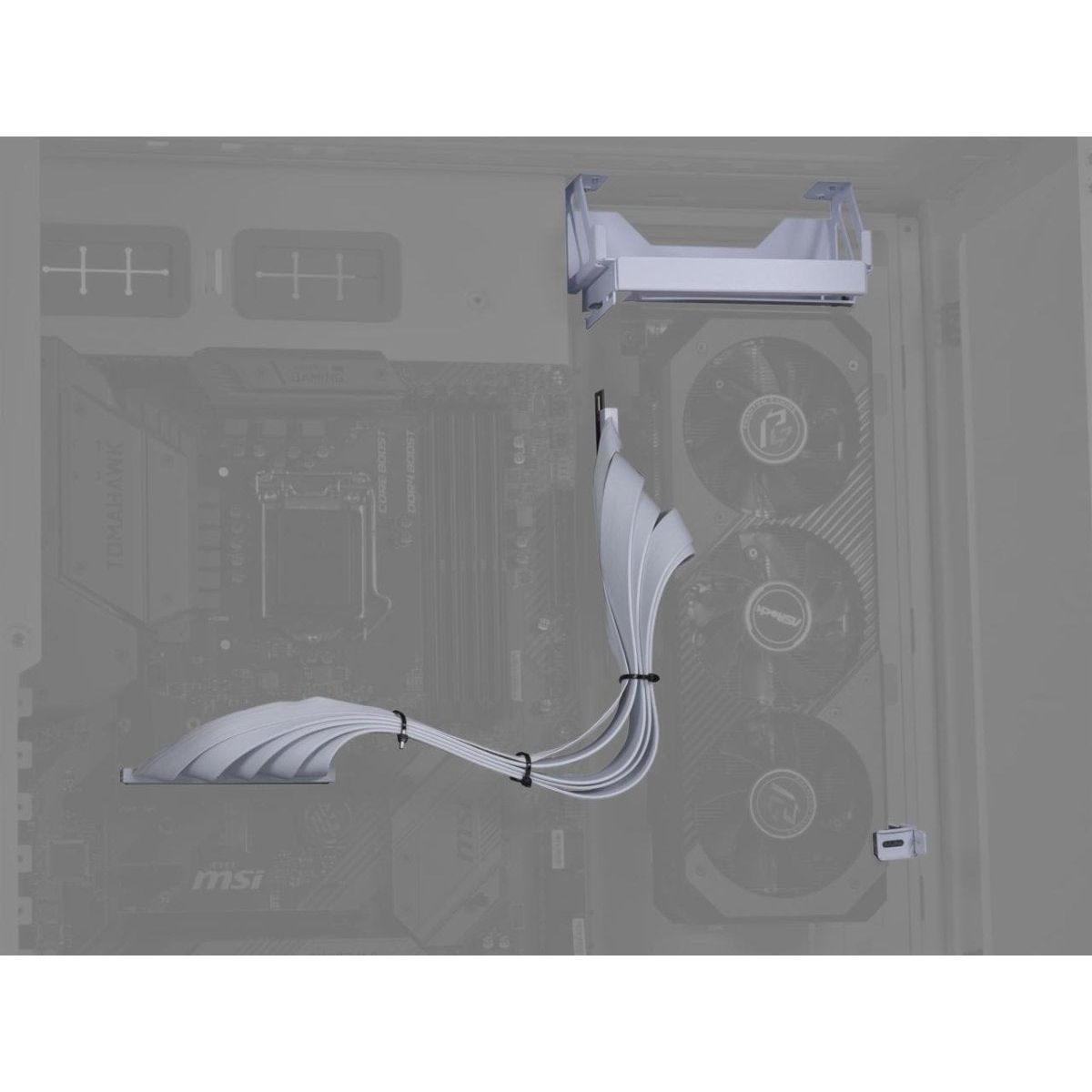

The GPU holds perfectly beside the motherboard and holds 2 HDDs or 4 SSDs behind the GPU.

HDD TRAY PANEL SCENARIO

Supreme Water-Cooling Configuration

Normal Mode with HDD Tray Panel Scenario

Moving the GPU next to the motherboard opens up the main chamber in the chassis for the tubes to pass through and creates a chimney-style airflow, effectively cooling the top and bottom radiator.

Ultimate Air-Cooling Configuration

Normal Mode with HDD Tray Panel Scenario

Paired with the upright GPU kit, the front mesh kit provides the O11D EVO with additional fresh air intake from the front to better cool the GPU and the CPU.

NOTE: Recommend Set-up for some GPUs

Due to GPU cooler design, some GPUs have been found to perform significantly better with GPU IO facing down when using upright GPU kit.

Test result as follows:

FAN BRACKET SCENARIO

Extreme AIO-cooling configuration

Reverse Mode at Fan Bracket Scenario

Exhaust fans behind the GPU directly pull the heat out of the chamber, effectively control the GPU temperature.

Reverse Mode with Front Mesh Kit at Fan Bracket Scenario

Replace the glass panel to the front mesh kit brings further fresh air into the chassis to cool the CPU and GPU efficiently.

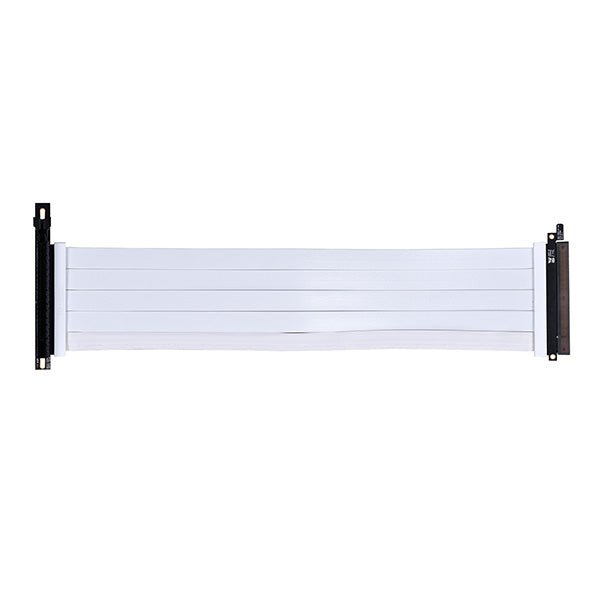

GEN 4.0 PCIE RISER CABLE

The PCIe 4.0 riser cable supports bit rate speeds of 16GT/s. While providing double the bandwidth of PCIe 3.0, the Gen 4.0 riser cable remains backward compatible with a maximum transfer speed, offering great performances.

Note: Make sure the GPU PCIe Connector is fully inserted into the PCIe Riser Cable Socket and motherboard PCIe slot when powered off. Circuit short may occur and cause hardware damages if installed not properly.

FAN AND RADIATOR COMPATIBILITY

When installing a three-slot thick GPU in the upright position, the radiator width clearance beside the bracket is limited to 130mm, and 120mm for fans.

Normal Mode

Reverse Mode
