EVGA Z790 DARK K|NGP|N PCIe Gen5 EATX Intel LGA 1700 Motherboard (Kingpin Z790)
EVGA Z790 DARK K|NGP|N PCIe Gen5 EATX Intel LGA 1700 Motherboard (Kingpin Z790)
Regular price
$599.99
Regular price
$799.99
Sale price
$599.99
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability

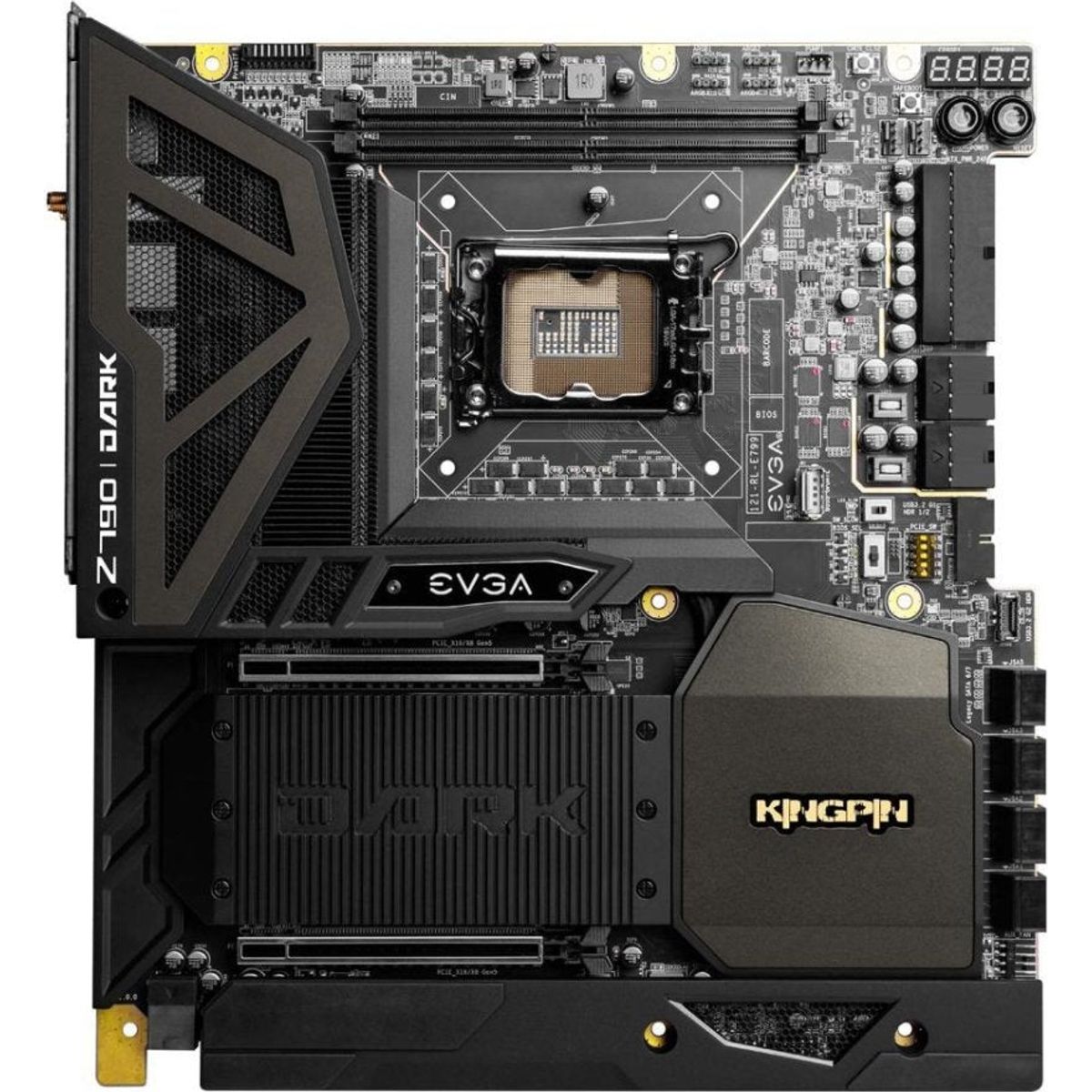

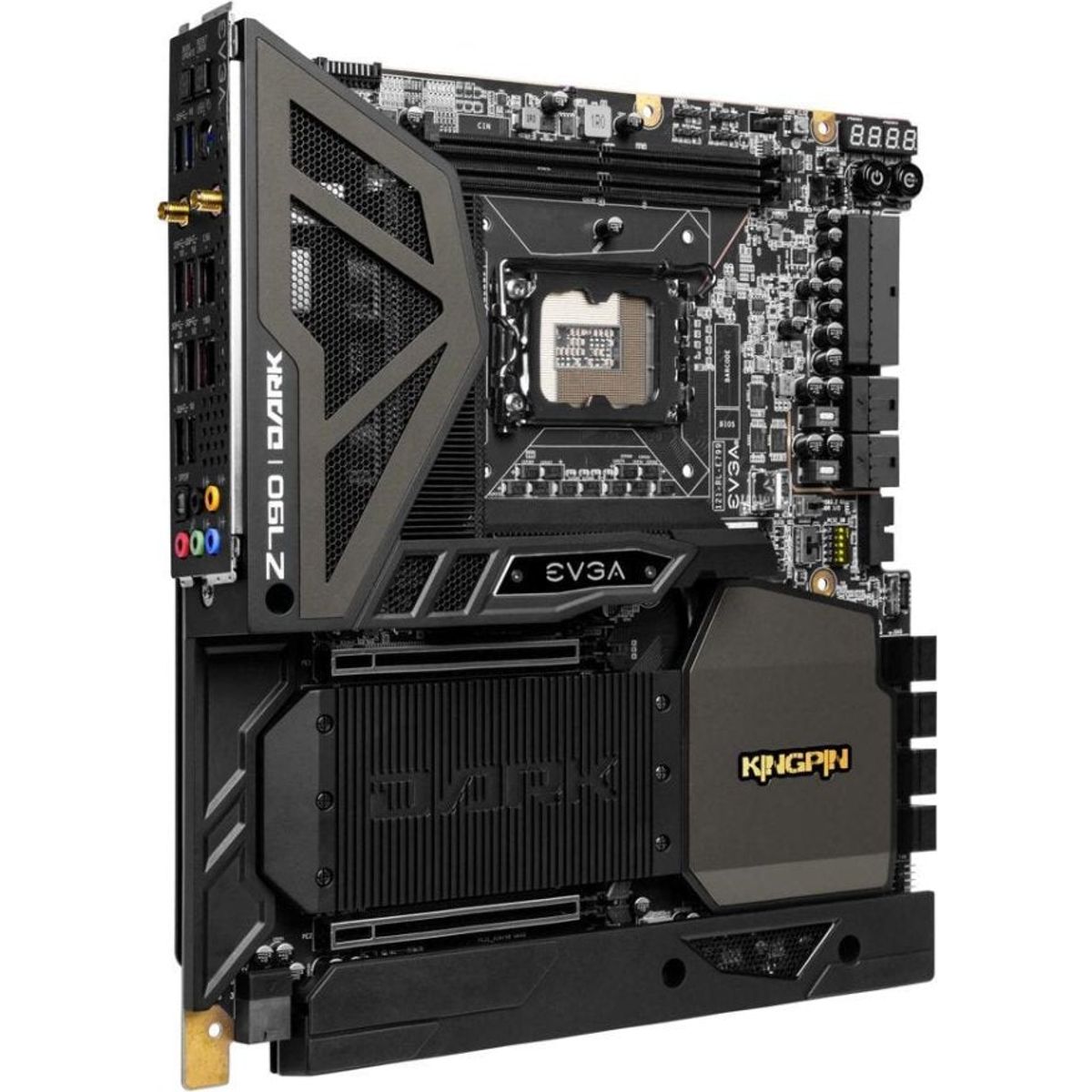

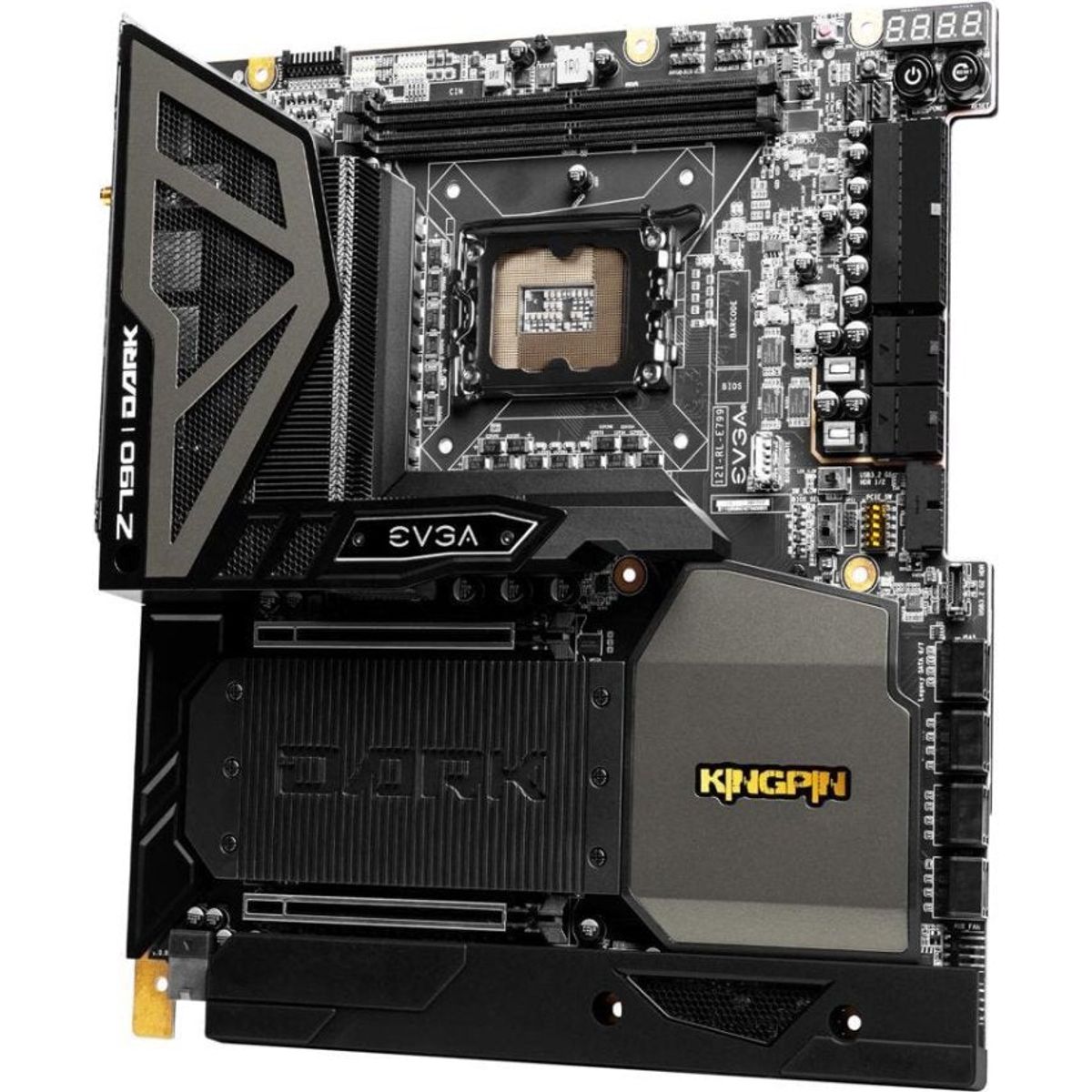

EVGA Z790 DARK K|NGP|N Motherboard (Kingpin Z790)
The EVGA Z790 DARK K|NGP|N rises once again. Built on a 14-layer low-loss PCB with a 21-phase VRM – this board will squeeze everything out of 13th Gen Intel® Core™ processors. This board supports up to 64GB DDR5 and up to 8000MHz+(OC)*, PCIe Gen5, and PCIe Gen4 M.2 NVMe support. The Z790 DARK K|NGP|N auto-switches the x16 PCIe Gen 5 CPU lanes between slots 1 and 2 to give your PCIe device maximum bandwidth no matter where it’s installed**. This board also includes 10Gbps and 2.5Gbps NICs + Wi-Fi 6E / BT 5.2, 7.1 HD audio, 3x M.2 Key-M slots, and 2x pump headers for CPU AIO. The Z790 DARK K|NGP|N remains the choice of those that want a board capable of unbelievable performance
SPECS
Model |
|
| Brand | EVGA |
| Model | Z790 DARK K|NGP|N |
| Part Number | 121-RL-E799-KR |
Supported CPU |
|
| CPU Socket Type | LGA 1700 |
| CPU Type | Core i3 / Core i5 / Core i7 / Core i9 / Intel Core 12th Gen (LGA 1700) / Intel Core 13th Gen (LGA 1700) |
| Chipsets | |
| Chipset | Intel Z790 |
Memory |
|
| Number of Memory Slots | 2x288pin (DDR5) |
| Memory Standard | up to 8000MHz+(OC) |
| Maximum Memory Supported | 64GB |
| Channel Supported | Dual Channel |
Expansion Slots |
|
| PCI Express 5.0 x16 | 2x PCIe 5.0 x16 (x16/x8) |
| PCI Express x4 | 1x PCIe 4.0 x4 (via PCH) |
Storage Devices |
|
| SATA 6Gb/s | 6 x SATA 6Gb/s |
| M.2 | M.2 Key-M Sockets - 3x 110mm PCIe 4.0 (Up to 64Gb/s) |
| M.2 Key-E Sockets - 1x 32mm | |
| SATA RAID | 0/1/5/10 |
Onboard Audio |
|
| Audio Chipset | Realtek ALC1220 |
| Audio Channels | 7.1 Channels |
Onboard LAN |
|
| LAN Chipset | 1x Marvell 10 Gigabit NIC |
| Second LAN Chipset | 1x Intel i226-V 2.5 Gigabit NIC |
| Max LAN Speed | 10Gbps + 10/100/1000/2500Mbps |
| Wireless LAN | Intel Dual-Band Wi-Fi 6E / BT5.2 module, preinstalled in the M.2 Key-E 32mm Slot |
| Bluetooth | Yes |
Rear Panel Ports |
|

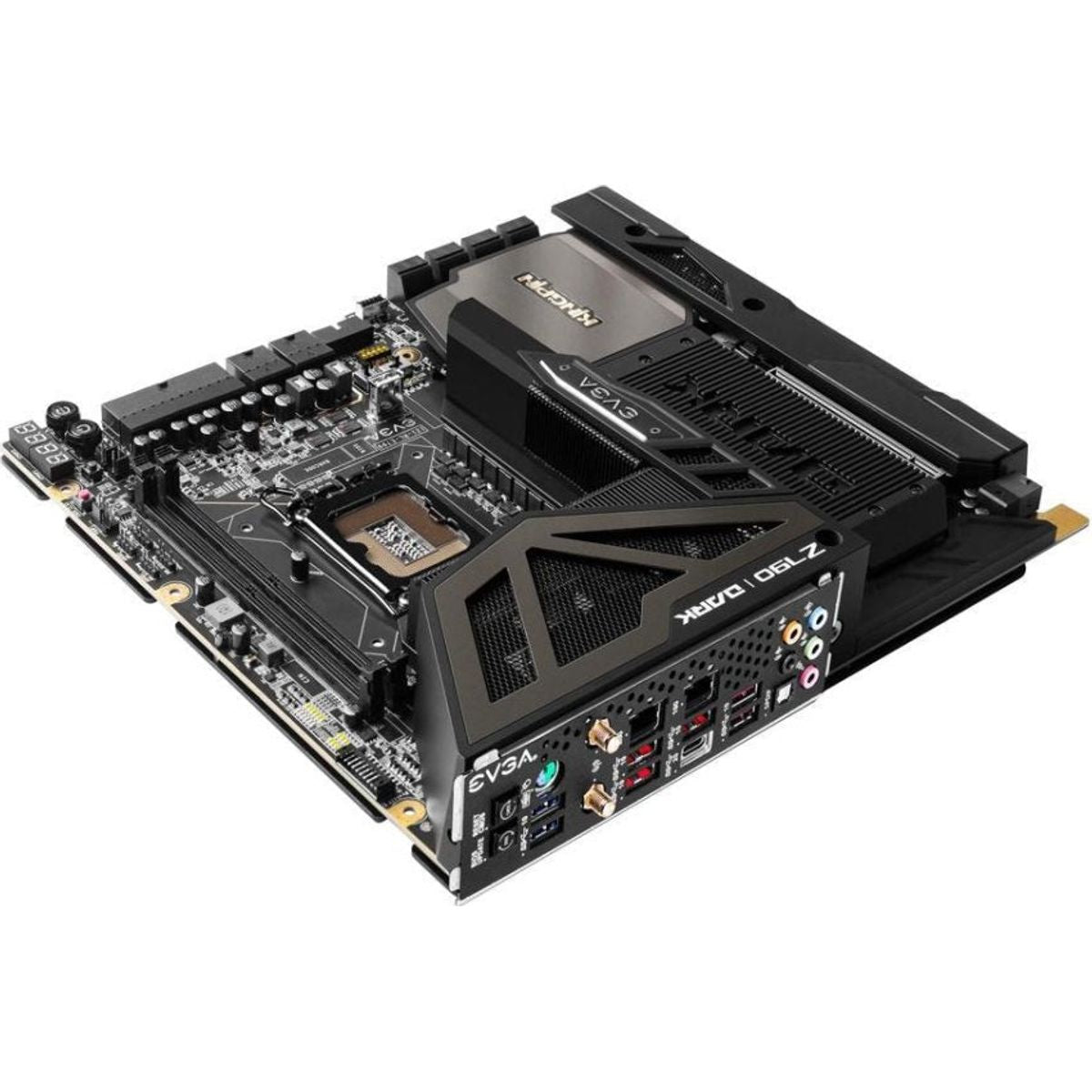

| Back I/O Ports | 1 x Clear CMOS Button / 1 x Flash BIOS Button / 1 x Optical S/PDIF Out / 1 x PS/2 Keyboard/Mouse Combo / 1 x USB 3.2 Gen 2x2 Type-C / 2 x LAN (RJ45) / 2 x USB 3.2 Gen 1 Type-A / 5 x Audio Jacks / 5 x USB 3.2 Gen 2 Type-A |
Internal I/O Connectors |
|
| Onboard USB | 1x USB 2.0 Port (for BIOS update) |
| 2x USB 2.0 Headers | |
| 1x USB 3.2 Gen1 Header | |
| 1x USB 3.2 Gen2 Type-C Header | |
| Other Connectors | Fan Headers - 2x CPU PWM, 4x PWM/DC, 2x PUMP Headers |
| ARGB Headers - 4x ARGB Headers | |
Physical Spec |
|
| Form Factor | Extended ATX |
| Dimensions (W x L) | 12.0" x 10.9" |
| Power Pin | 24 Pin |
Windows Compatibility |
|
| Windows 11 | Supported |
Features |
|
| Features | 21 Phase Digital VRM provides the cleanest variable power switching |
| Right-angle power connectors to improve cable management and reduce latency | |
| Improved overclock stability and PCB cooling keeps M.2 SSDs at optimal temps | |
| Preinstalled rear I/O cover | |
| Integrated EVGA Wireless Module with Intel Wi-Fi 6E AX211 - Wi-Fi 6E/BT 5.2 with external antenna | |
| PCIe Gen 5.0 Ready with metal-reinforced PCIe slots for the heaviest of graphics cards | |
| Supports NVIDIA Resizable BAR | |
| Monitor Your Temps, Overclock and Control Your LEDs with EVGA ELEET X1 | |
| EVGA's Latest GUI BIOS with OC Robot and In-BIOS Stress Testing | |
Packaging |
|

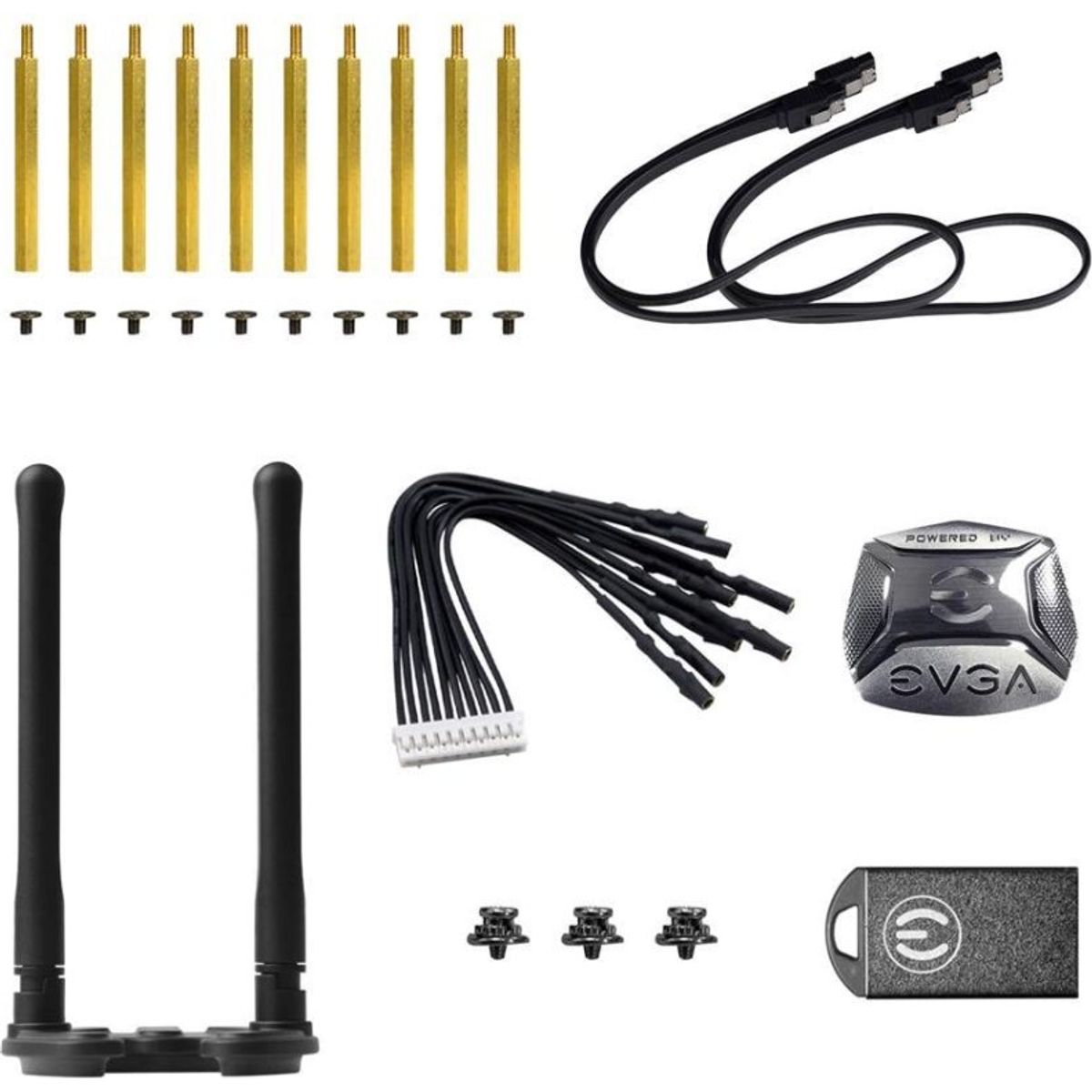

| Package Contents | EVGA Quick Installation Guide |
| 2x SATA 6Gb/s Data Cables | |
| M.2 Thermal Pads | |
| EVGA Wi-Fi Antenna | |
| 2x ProbeIt Cable | |
| Baseplate, screws, and standoffs | |
| M.2 Screw Kit | |
| USB Flash drive with driver and manual | |
MPN: 121-RL-E799-KR
