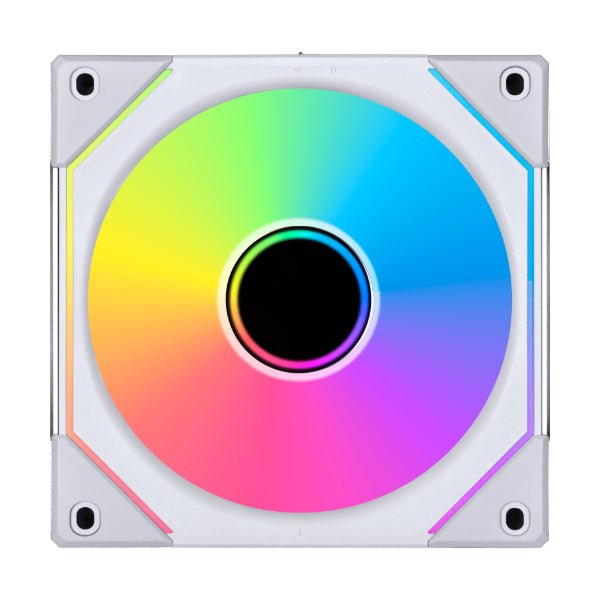

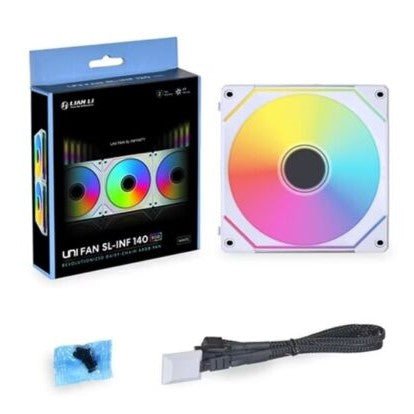

Lian Li UNI Fan SL Infinity 140 - WHITE - 1-pack
Lian Li UNI Fan SL Infinity 140 - WHITE - 1-pack
Couldn't load pickup availability
Lian Li UNI Fan SL Infinity 140
- Software controlled fan speed/ LED lighting
- Only one cable is required for a cluster of fans
- Embedded magnetic Fluid Dynamic Bearing to provide stability, durability, and longevity
- 40 LEDs in each fan
- Quick PIN connection to provide ease of installation
- Low noise level at high RPM
- Infinity mirror look all around

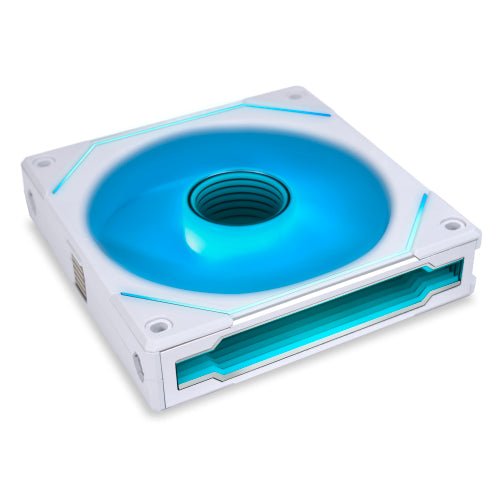

INFINITY MIRROR FAN
A combination of the original UNI FAN SL and AL with a touch of infinity mirror, the SL-Infinity fans glow clear with multi-layer effects from any visible angle.
CENTERED INFINITY MIRROR ARGB
The circular-shaped infinity mirror at the center of the fan is tuned to have multiple layers spaced 0.5mm apart.
SIDE FRAME ARGB
Following the iconic angular lighting style of SL fans, the SL-Infinity fans have 2 thin LED strips on both sides of the fan blade.
ALUMINUM TRIM SURROUNDED INFINITY MIRROR
Surrounding aluminum trims are located on both sides of the frame. The geometric shape of the infinity mirror follows the front ARGB lighting strip in a top and bottom pattern that creates a 3D indented look.
REVERSIBLE CABLE MODULE
The cable module is now placed at the center of the fan and can switch orientation to reduce clearance issues with the radiator inlet and outlet.
IMPROVED PERFORMANCE
The SL-Infinity 120 features a 10% performance optimization compared to the SL120 which results in better airflow (61.3 CFM), higher static pressure (2.66 mmH2O), and a larger range of fan speed (0, 200 ~ 2100RPM) at lower noise levels (29 dB(A)).
L-CONNECT 3 SOFTWARE TO CONTROL SL-INF FANS
Control and preview with precision the lighting effect of the SL-Infinity fans with the new L-Connect interface.
SIMPLE CONNECTION WITH CONTROLLER
The all-new cable module and controller simplify cable management and provide efficient power to the fans.
SPECIFICATIONS
- UPC: 840353044005
- MPN: UF-SLIN140-1W
- SKU: 269329-IN14-1W
|
PRODUCT NAME |
LIAN LI UNI FAN SL-INF 120/140 RGB |
|||||
|
MODEL |
UF-SLIN120-3B |
UF-SLIN120-1B |
UF-SLIN120-3W |
UF-SLIN120-1W |
UF-SLIN140-1B |
UF-SLIN140-1W |
|
COLOR |
Black |
White |
Black |
White |
||
|
NUMBER OF FANS |
3 |
1 |
3 |
1 |
1 |
1 |
|
CONTROLLER |
Yes |
No |
Yes |
No |
No |
No |
|
CONNECTOR TYPE |
4 × 7-PIN |
1 × 4-PIN PWM + 3-PIN ARGB |
4 × 7-PIN |
1 × 4-PIN PWM + 3-PIN ARGB |
1 × 4-PIN PWM + 3-PIN ARGB |
1 × 4-PIN PWM + 3-PIN ARGB |
|
FAN DIMENSION |
120 X 122.1 X 25 (mm) |
140 X 142 X 25 (mm) |
||||
|
RATED VOLTAGE |
DC 12V (FAN) & 5V (LED) |
|||||
|
FAN SPEED |
0,200~2100 RPM |
0,200~1600 RPM |
||||
|
MAX. AIR PRESSURE |
2.66 mmH2O (Maximum) |
2.88 mmH2O (Maximum) |
||||
|
MAX. AIRFLOW |
61.3 CFM (Maximum) |
72.7 CFM (Maximum) |
||||
|
ACOUSTIC NOISE |
29 dB(A) Max |
28 dB(A) Max |
||||
|
LOCKED CURRENT |
≧50mA |
≧40mA |
||||
|
BEARING TYPE |
Fluid Dynamic Bearing (FDB) |
|||||
|
START-UP VOLTAGE |
DC ≦6V |
|||||
|
INPUT CURRENT |
180mA (FAN) /600mA (LED) |
150mA (FAN) / 600mA(LED) |
||||
|
INPUT POWER |
5.16W |
4.56w |
||||
|
WARRANTY |
2 years |
|||||
