SilverStone Technology

SilverStone ATX 3.0 HELA 850R Platinum 850W Cybenetics 12VHPWR Gen 5 Power Supply

$214.99 USD
$214.99 USD
Shipping calculated at checkout.

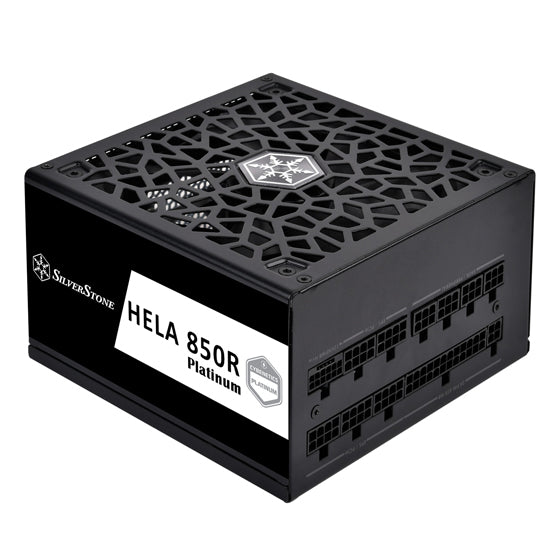

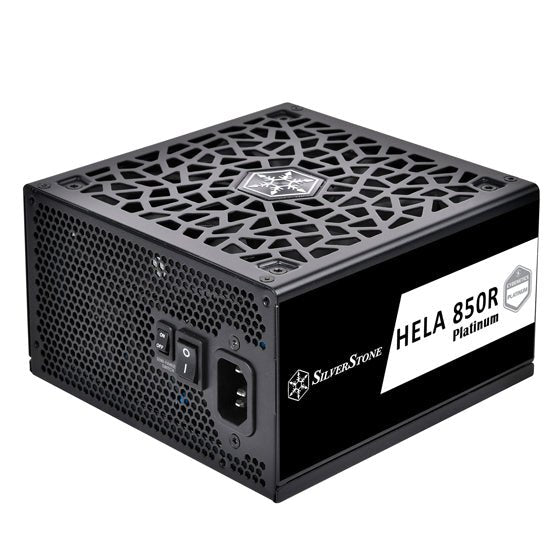

SilverStone HELA 850R Platinum 850 Watt Cybenetics Platinum ATX 3.0 Fully Modular Power Supply

  • Product Manual
  • Installation Manual
  • 100% modular cables
  • Super flexible black flat cables
  • All Japanese electrolytic capacitors
  • Supports 12VHPWR PCIe connector with ATX 3.0 and PCIe Gen 5 standard
  • 24/7 continuous power output with 50℃ operating temperature
  • 180° angled SATA connectors designed for stack mounted hard drives

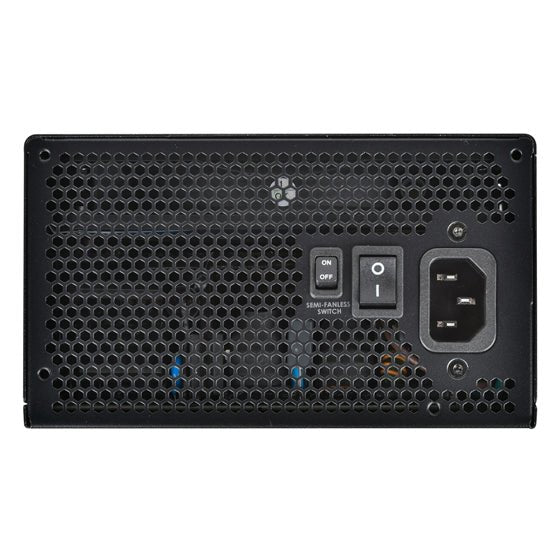

  • Ultra silent 135mm FDB fan with semi-fanless and delayed shut-off function

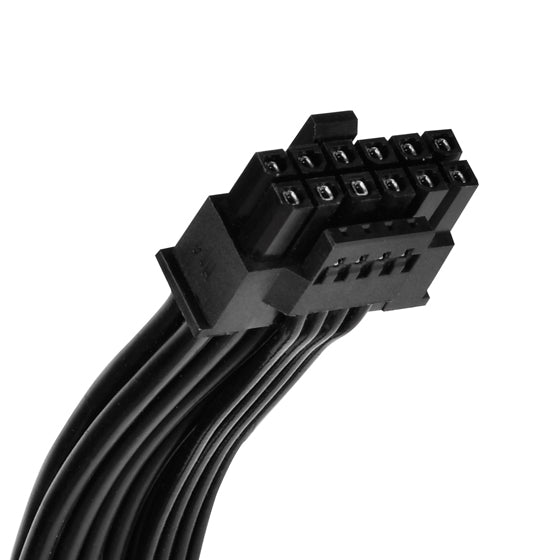

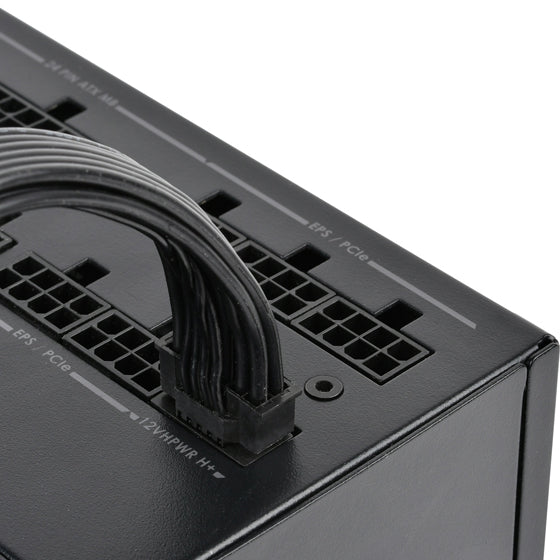

12VHPWR PCIe connector supports ATX 3.0 and PCIe Gen5 standards

The 16 pin (12VHPWR) design is capable of withstanding power failure caused by a running graphics card’s instantaneous peak power consumption, whilst providing higher stability and efficiency power output for high-end systems.


Cybenetics Platinum Certified

Designed for Cybenetics Platinum level of efficiency to reduce wasted heat and save on electricity.

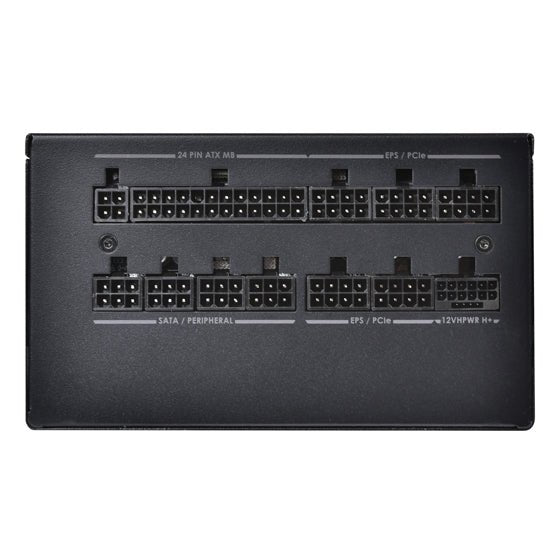

Fully modular design with universal EPS / PCIe connector interface

Flat cables have much greater flexibility to allow for tighter folding and management of cable.

All Japanese electrolytic capacitors

Ensure reliable power and long-life span.

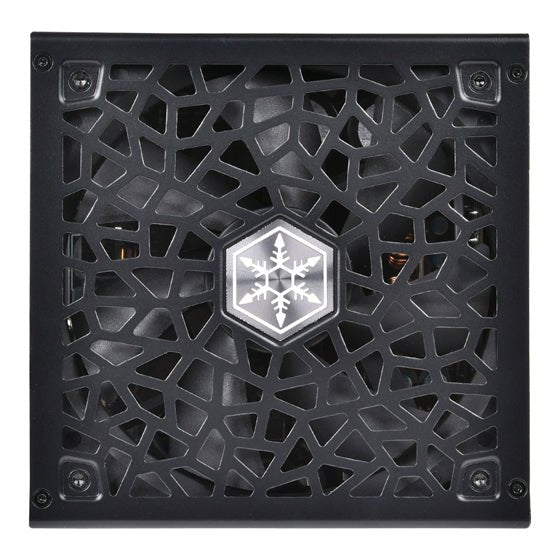

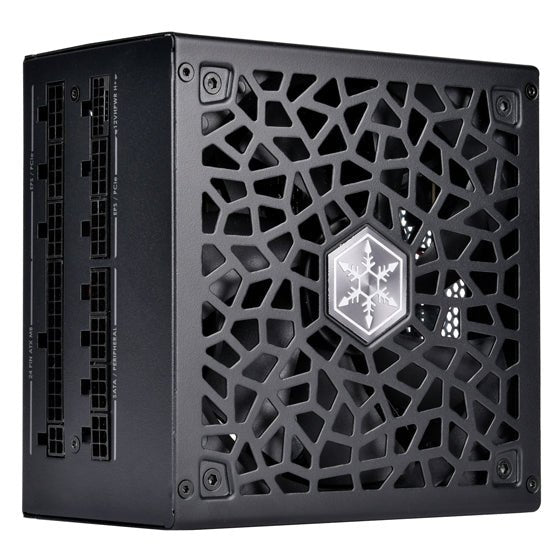

Silent 135mm FDB fan

Built-in 135 mm fan has excellent airflow and low noise, perfect for quiet home or office use.

Specs

Color

  • Black (lead-free paint)

Max. DC Output

  • 850W

Power density

  • 439W per liter

Load Range

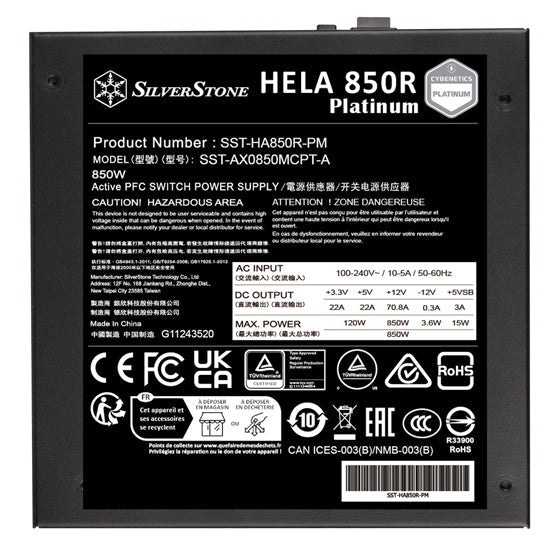

Output +3.3V +5V +12V +5VSB -12V
Max.(Amps) 22A 22A 70.8A 3.0A 0.3A
Min.(Amps) 0A 0A 0A 0A 0A
Range (%) ±5% ±5% +5/-7% ±10% ±5%
Line Reg.(%) ±1% ±1% ±1% ±1% ±1%
Ripple(mVp-p) 40mV 40mV 80mV 40mV 80mV

Combined +3.3V & +5V

  • 120W

Combined +12V

  • 849.6W

Input Voltage

  • 90 ~ 264 Vrms

Input Frequency Range

  • 47Hz ~ 63Hz

PFC

  • Active PFC (PF>0.9 at full load)

Efficiency

  • ≥89% & <91% overall efficiency

MTBF

  • 100,000 hrs

Operating temperature

  • 0°C ~ 50°C

Protection

  • Over Current Protection
  • Over Power Protection
  • Over Voltage Protection
  • Over Temperature Protection
  • Short Circuit Protection
  • Under Voltage Protection

Connectors

  • 1 x 24 / 20-Pin motherboard connector
  • 2 x 8 / 4-Pin EPS / ATX 12V connectors
  • 1 x 12+4-Pin 12VHPWR connector
  • 5 x 8 / 6-Pin PCIe connectors
  • 8 x SATA connectors
  • 6 x 4-Pin Peripheral connectors
  • 2 x 4-Pin Floppy connectors

Cooling System

  • Silent 135mm FDB fan

Noise Level

  • 0 dBA minimum

Certification

  • Cybenetics Platinum

Form factor

  • ATX (PS2)

MPN: SST-HA850R-PM
