Sapphire

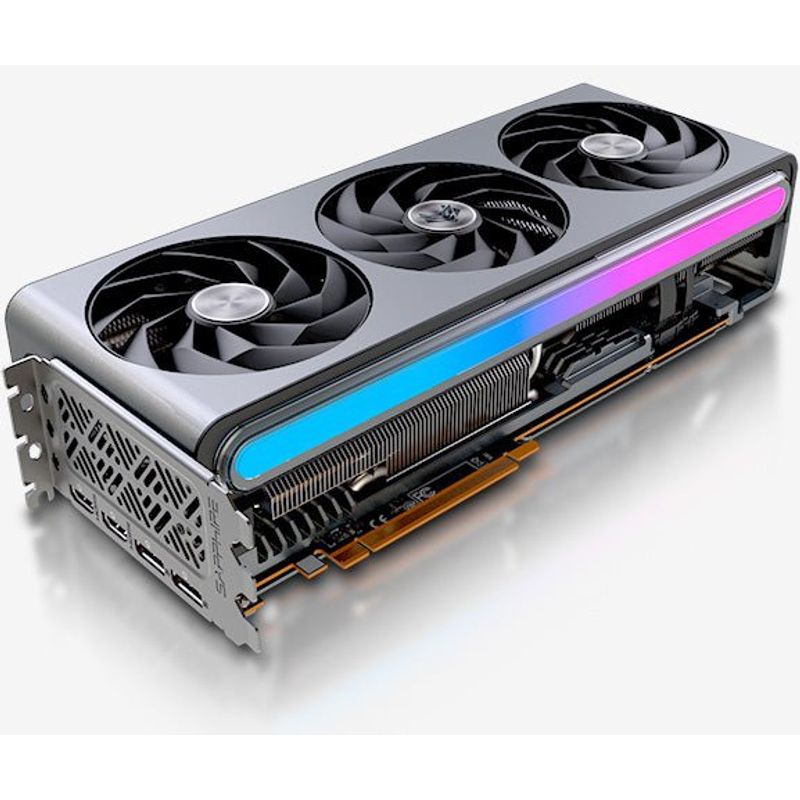

Sapphire NITRO+ RX 7900 XT 20GB GDDR6 PCI Express 4.0 x16 ATX Video Card

Regular price $1,099.99 USD
Regular price Sale price $1,099.99 USD
Shipping calculated at checkout.

    SAPPHIRE NITRO+ Radeon RX 7900 XT 20GB GDDR6 PCI Express 4.0 x16 ATX Video Card (11323-01-40G)

    Specifications

    GPU

    • AMD Radeon™ RX 7900 XT Graphics Card
    • 5nm GPU
    • AMD RDNA™ 3 Architecture

    Engine Clock

    • Boost Clock: Up to 2560 MHz
    • Game Clock: Up to 2220MHz

    Boost Clock is the maximum frequency achievable on the GPU running bursty workload. Boost clock achievability, frequency, and sustainability will vary based on several factors, including but not limited to: thermal conditions and variation in application and workloads.

    Game Clock is the expected GPU clock when running typical gaming applications, set to typical TGP(Total Graphics Power). Actual individual game clock results may vary.

    Stream Processors

    • 5376

    Compute Units

    • 84 CU (with RT+AI Accelerators)

    Infinity Cache

    • 80MB

    Ray Accelerators

    • 84

    Memory Size/Bus

    • 20GB/320 bit GDDR6

    Memory Clock

    • 20 Gbps Effective

    Displays

    • Maximum 4 Displays

    Resolution

    • HDMI™: 7680×4320
    • DisplayPort 2.1: 7680×4320

    Interface

    • PCI-Express 4.0 x16

    Output

    • 2x HDMI
    • 2x DisplayPort

    BIOS Support

    • Dual UEFI

    Game Index

    • 4K

    Sapphire Features

    • Dual BIOS
    • TriXX Software Switch
    • Premium Digital Power Design
    • Ultra High Performance Conductive Polymer Aluminum Capacitors
    • Fuse Protection
    • Tri-X Cooling Technology
    • Vapor-X Cooling
    • High TG Copper PCB
    • Optimized Composite Heatpipe
    • Intelligent Fan Control
    • Precision Fan Control
    • Metal Backplate with ARGB
    • Dual ARGB Light Bar
    • Two-Ball Bearing Fans
    • Angular Velocity Fan Blade
    • Assistive System Fan Control
    • Die Casted Aluminum-Magnesium Alloy Frame
    • Frontplate Heatsink for VRM
    • Wave Fin Design
    • V Shape Fin Design for GPU Cooling
    • TriXX Supported
    • Fan Check
    • Fan Quick Connect
    • TriXX Boost
    • NITRO Glow
    • External RGB LED MB Synchronization
    • Graphics Card Supporter
    • ARGB Extension Cable

    AMD Features

    • AMD RDNA™ 3 Gaming Architecture
    • 84 AMD RDNA™ 3 Compute Units (with RT+AI Accelerators)
    • 80MB AMD Infinity Cache™ technology
    • DisplayPort™ 2.1
    • AMD Radiance Display™ Engine
    • AMD Radeon™ Boost technology*
    • AMD Radeon™ Anti-Lag* technology*
    • 20GB GDDR6 on 320-Bit Memory Bus
    • PCI® Express 4.0 ready
    • AMD FidelityFX™ technologies*
    • AMD FidelityFX™ Super Resolution technology*
    • Microsoft® DirectX® 12 Ultimate
    • Microsoft® DirectStorage
    • Vulkan® Optimized
    • AMD smart technologies*
    • AMD Software: Adrenalin Edition™ application
    • AMD Noise Suppression*
    • AMD Privacy View*
    • AMD Radeon™ Super Resolution technology*
    • AMD Link*
    • AMD Freesync™ technology

    Cooling

    • 3 Fans
    • Vapor-X Cooling

    Form Factor

    • 3.5 slot, ATX
    • Dimension: 320(L)X 135.75(W)X 71.6 (H)mm

    Power Consumption

    • 368W Total Board Power

    OS

    • Linux®, Windows® 10, and Windows 11. 64-bit  operating system required

    System Requirement

    • Minimum 750 Watt Power Supply
    • 3 x 8-pin Power Connector.
    • PCI Express® based PC is required with one X16 lane graphics slot available on the motherboard.
    • Minimum 8GB of system memory. 16GB recommended.
