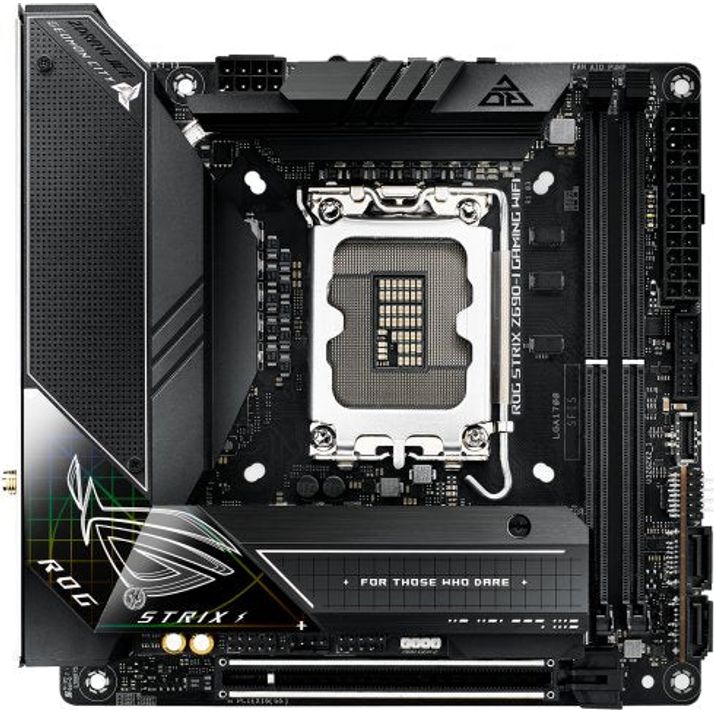

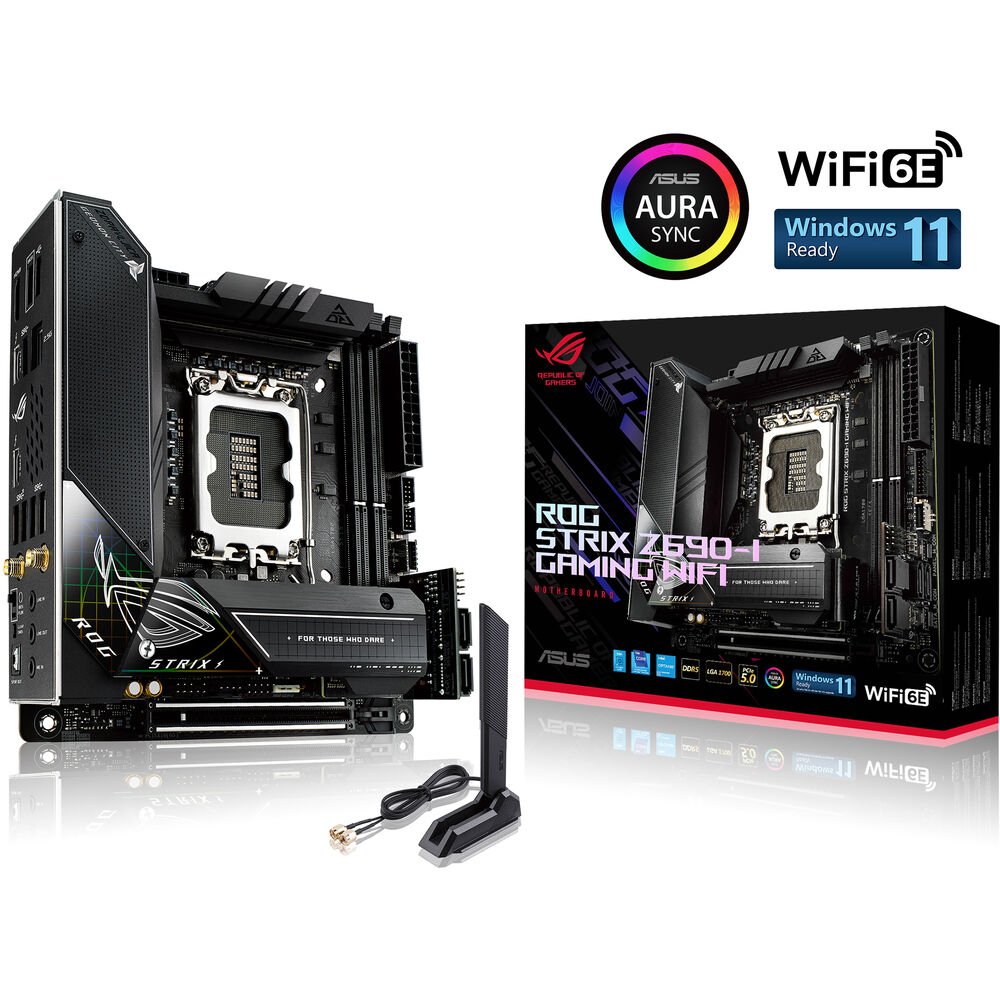

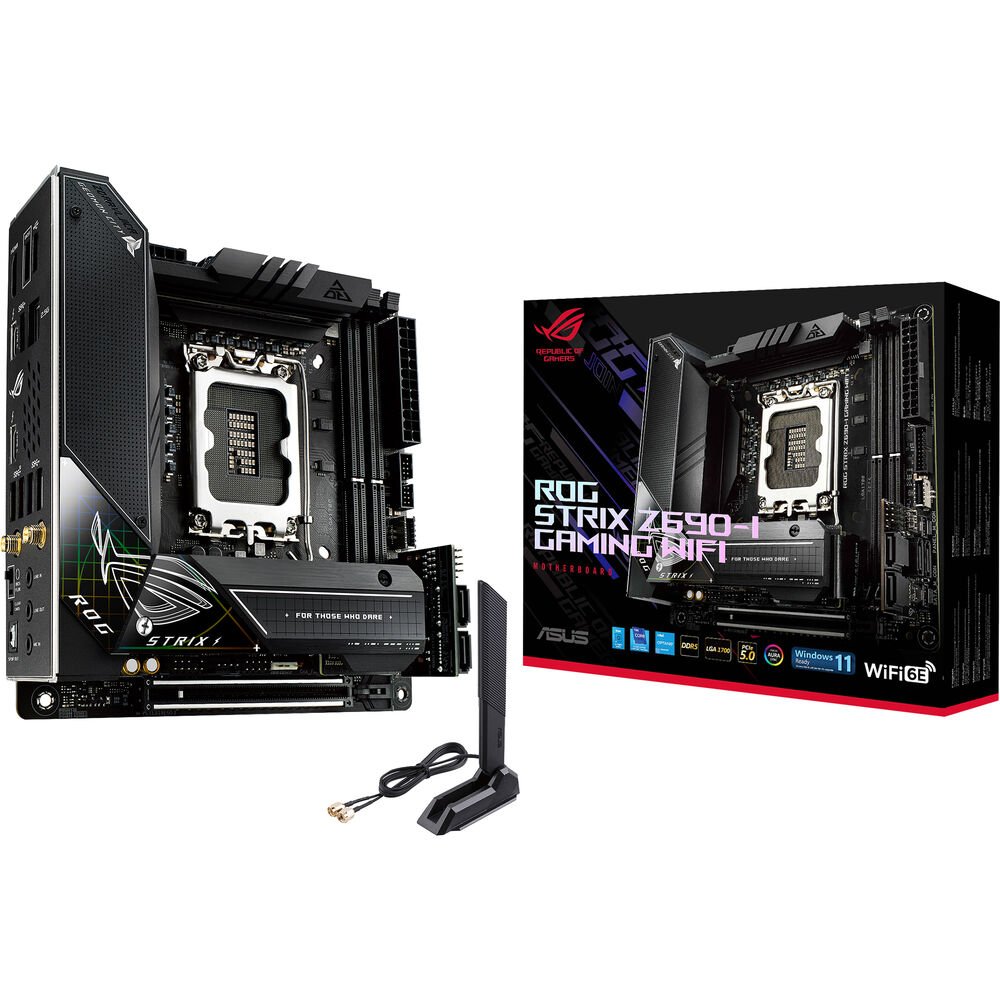

Asus ROG Strix Z690-i Gaming WiFi DDR5 LGA 1700 Mini-iTX Motherboard

Asus ROG Strix Z690-i Gaming WiFi DDR5 LGA 1700 Mini-iTX Motherboard

Regular price $209.99
Regular price $389.99 Sale price $209.99
Sale Sold out
Shipping calculated at checkout.



Take your gaming and content-creation experiences to the next level with the ASUS ROG Z690-I GAMING WIFI LGA 1700 Mini-iTX Motherboard to pack a ton of power into your compact desktop computer build. Supporting 12th generation Intel LGA 1700 socket processors and the Z690 chipset, which takes advantage of the large PCIe 5.0 data bandwidth, this mini-ITX motherboard is designed to take on intensive workloads, high-end games, and more. Up to 64GB of dual-channel DDR5 RAM, reaching 6400 MHz when overclocked, can be installed across two memory slots to improve the system's multitasking capabilities. At the same time, its PCIe 5.0 x16 slot can accommodate powerful graphics cards and other expansions. Installing a CPU with integrated graphics allows you to use the HDMI 2.1 port with a compatible 4K monitor. In addition to having two PCIe 4.0 M.2 solid-state drive slots, this motherboard has four SATA III drive headers with support for RAID 0, 1, 5, and 10 configurations.

The rear panel features two Thunderbolt 4 ports that can transfer up to 40 Gb/s with daisy chained devices such as storage drives and monitors. There are also two 10 Gb/s USB 3.2 Gen 2 Type-A ports, three 5 Gb/s USB 3.2 Gen 1 Type-A ports, and two USB 2.0 ports. A USB 3.2 Gen 2x2 Type-C port, which transfers up to 20 Gb/s, may be added through a compatible front panel with the available header. Use the built-in 802.11ax Wi-Fi 6E capabilities to transfer up to 2.4 Gb/s with compatible tri-band wireless networks and enjoy incredibly fast online games, live stream broadcasts, and more. Alternatively, you can use the 2.5 Gigabit Ethernet port to connect to compatible wired networks and high-speed devices. Other features include SupremeFX ALC4080 audio with the LED-illuminated connectors and Savitech SV3H712 AMP for crystal clear, detailed 7.1-channel surround sound. You can customize your computing experience using the addressable RGB lighting headers to customize various effects to match your mood, style, and game. Windows 10 or 11 64-bit is required to take advantage of all the ROG Z690-I GAMING WIFI's features.

PCIe 5.0 Memory Bandwidth

The ROG Z690-I GAMING WIFI motherboard pairs 12th generation Intel processors with PCIe 5.0 bandwidth, transferring up to a 128 GB/s in an x16 configuration using the Z690 chipset.

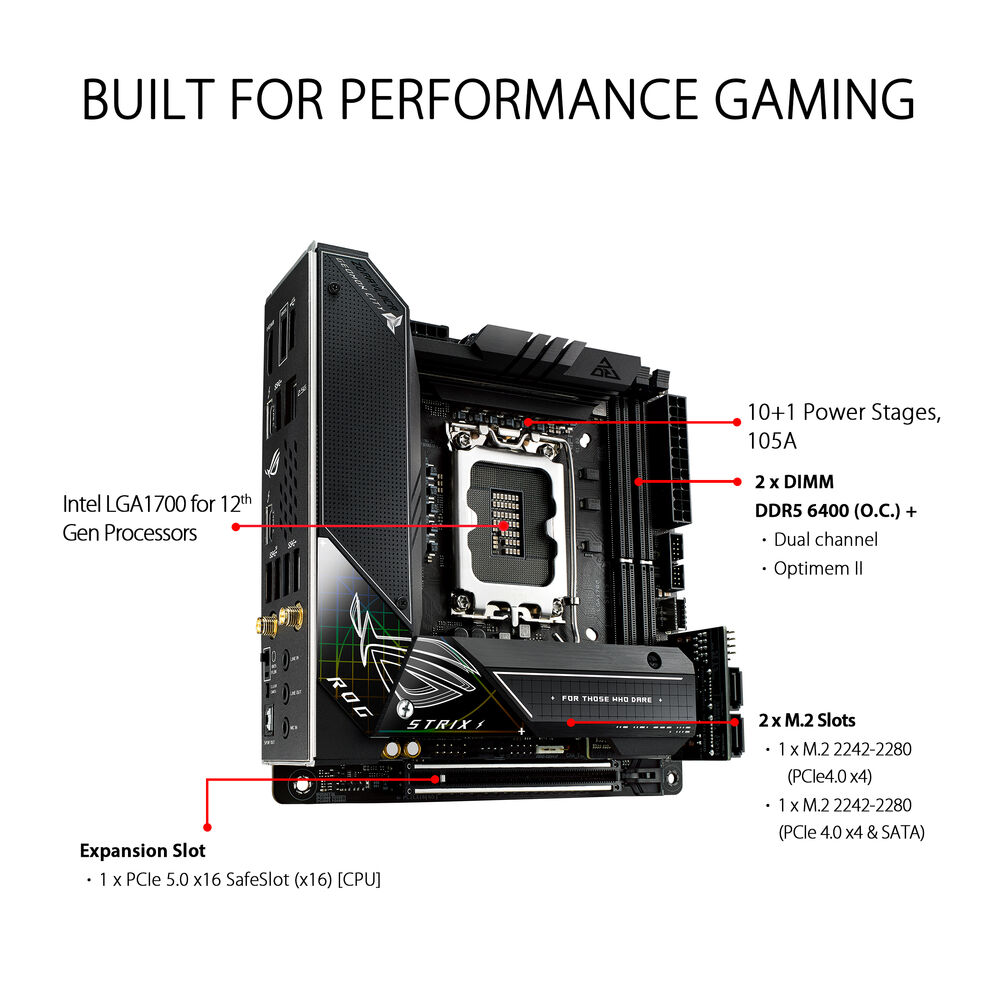

Performance

This motherboard features 10+1 power stages, ProCool II power connectors, alloy chokes, and durable capacitors.

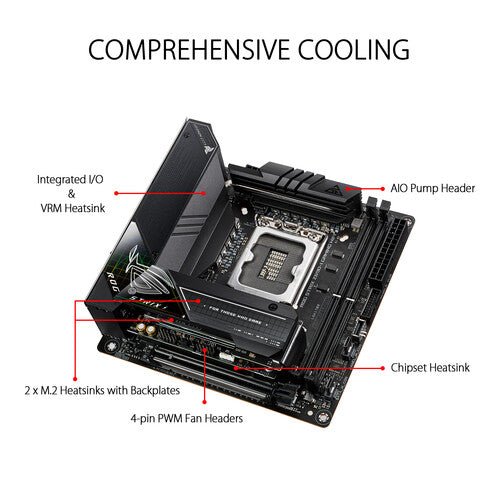

Thermal Design

Triple decker M.2 heatsinks help to prevent speed throttling during sustained data transfers. The hybrid fan headers allow you to install compatible cooling fans and control them through the Fan Xpert 4 utility.

Storage and Memory

  • Two PCIe 4.0 M.2 slots are available, supporting up to type 2280 NVMe PCIe and SATA SSDs
  • Four SATA III ports are available for hard drives and 2.5" SSDs
  • Supports RAID 0, 1, and 5 (NVMe)
  • Supports RAID 0, 1, 5, and 10 (SATA)
  • Up to 64GB of dual-channel DDR5-6400 (OC) memory can be installed across two slots
  • Supports Intel Extreme Memory Profile (XMP)
  • OptiMem II

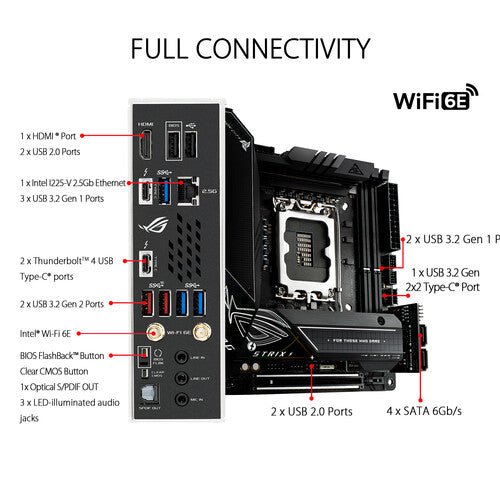

Rear Panel USB Connectivity

  • 2 x Thunderbolt 4 (40 Gb/s)
  • 2 x USB 3.2 Gen 2 Type-A (10 Gb/s)
  • 3 x USB 3.2 Gen 1 Type-A (5 Gb/s)
  • 2 x USB 2.0 Type-A (480 Mb/s)

Thunderbolt 4

Thunderbolt 4 is a hardware interface that utilizes the reversible USB Type-C connector and features a maximum throughput of 40 Gb/s when used with compatible devices. The connector also transmits data via USB4 at up to 20 Gb/s, and dual-bandwidth DisplayPort allows you to connect one 8K monitor or up to two 4K displays simultaneously. Additionally, you can daisy chain up to six devices from a single Thunderbolt 4 port.

Immersive Sound

This motherboard includes SupremeFX ALC4080 7.1-channel high-definition audio with a Savitech SV3H712 AMP, providing crystal clear 32-bit, 384 kHz playback with a 120 dB SNR for stereo playback output and a 113 dB SNR recording input. Connect your speakers using the illuminated audio jacks or S/PDIF optical port.

RGB Lighting

Connect, customize, and control equipment such as LED light strips with the onboard RGB and addressable RGB gen 2 headers to create dazzling effects that can be synchronized with ASUS Aura Sync compatible peripherals such as keyboards, mice, monitors, and more.

Clear Communications

Integrated two-way AI noise cancellation helps to ensure clear online voice and video chats.

ASUS Q-Design

  • M.2 Q-Latch
  • Q-DIMM
  • Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
  • Q-Slot

ASUS EZ DIY

  • BIOS FlashBack button
  • BIOS FlashBack LED
  • Clear CMOS button
  • CPU Socket lever protector
  • ProCool II
  • Pre-mounted I/O shield
  • SafeSlot
  • SafeDIMM
