Lian Li

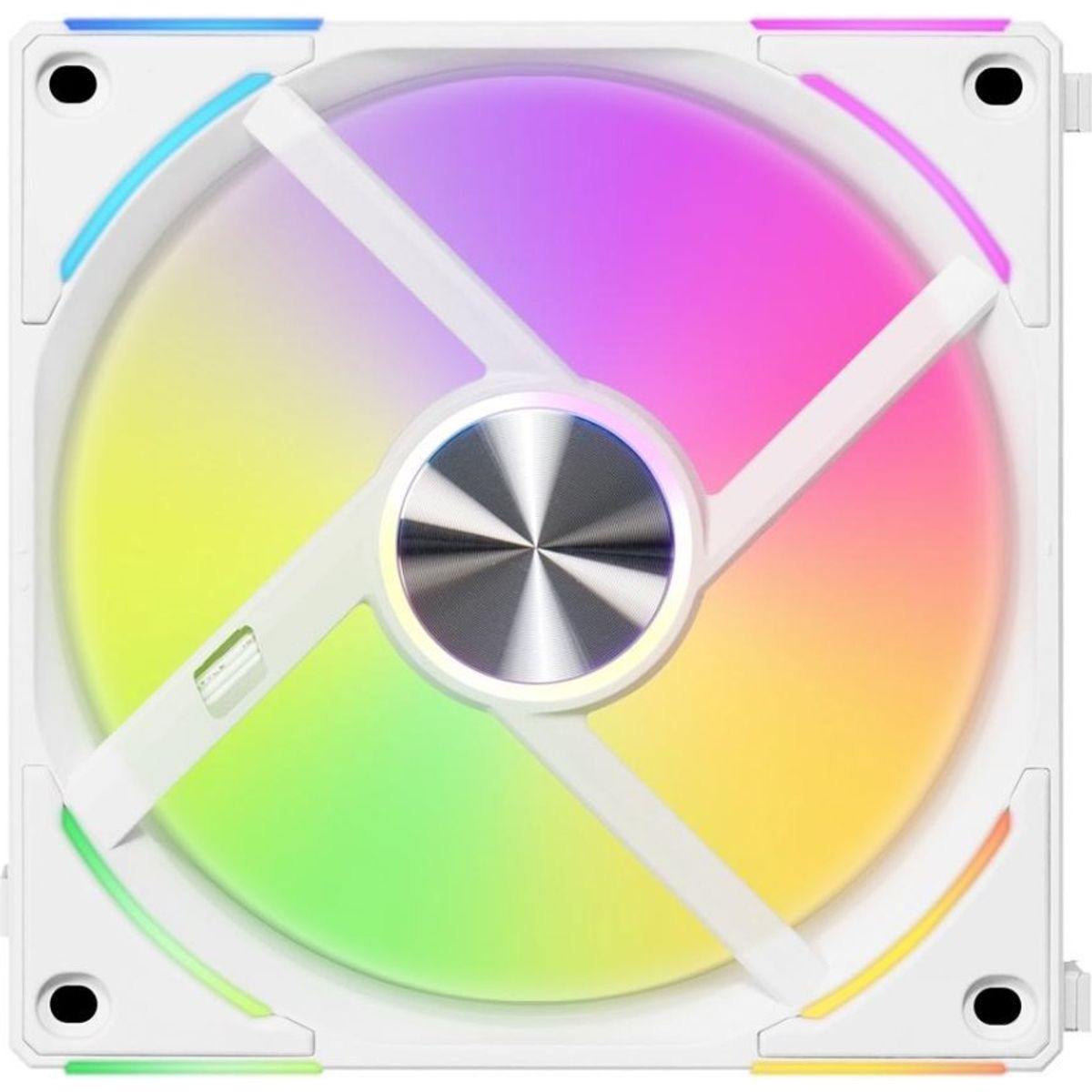

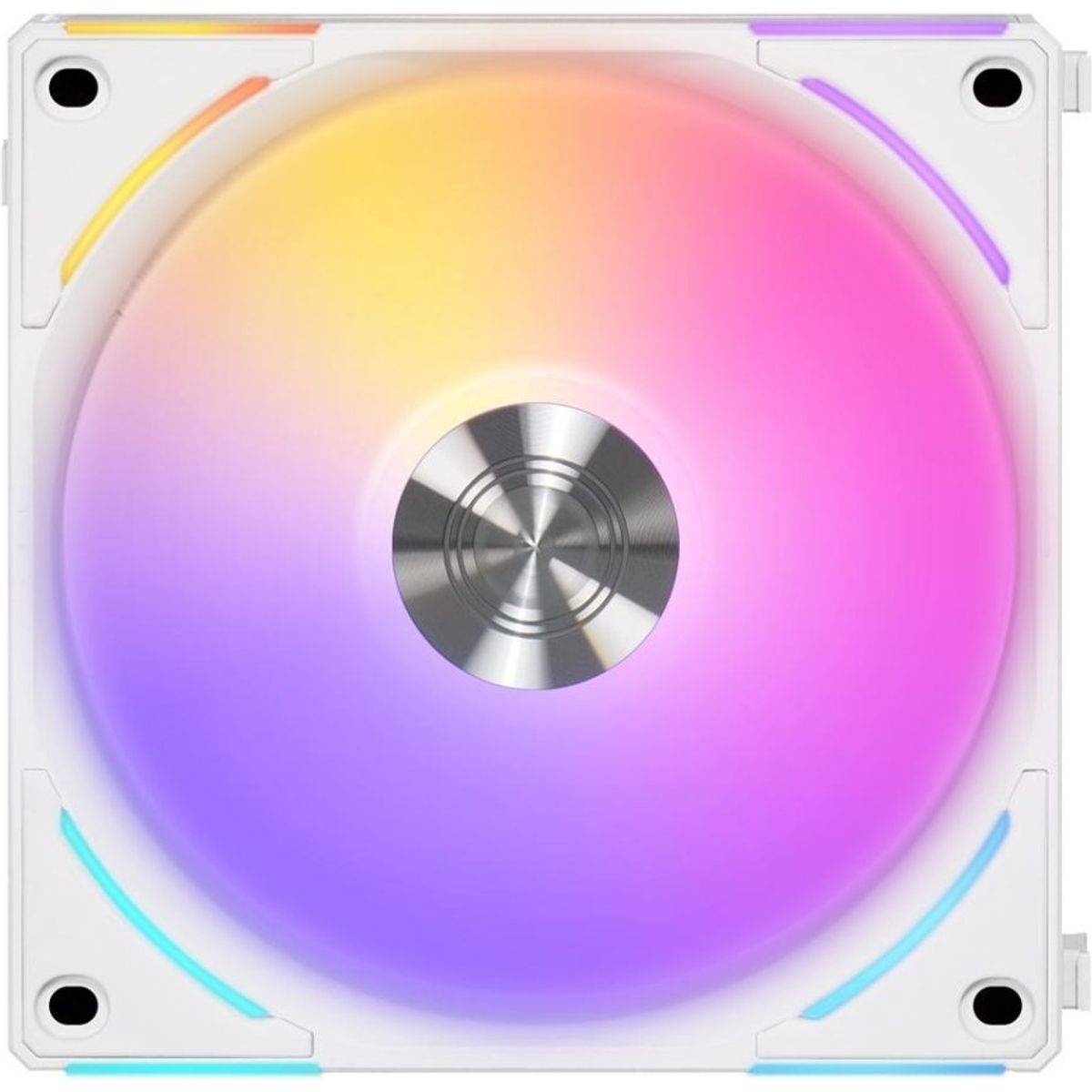

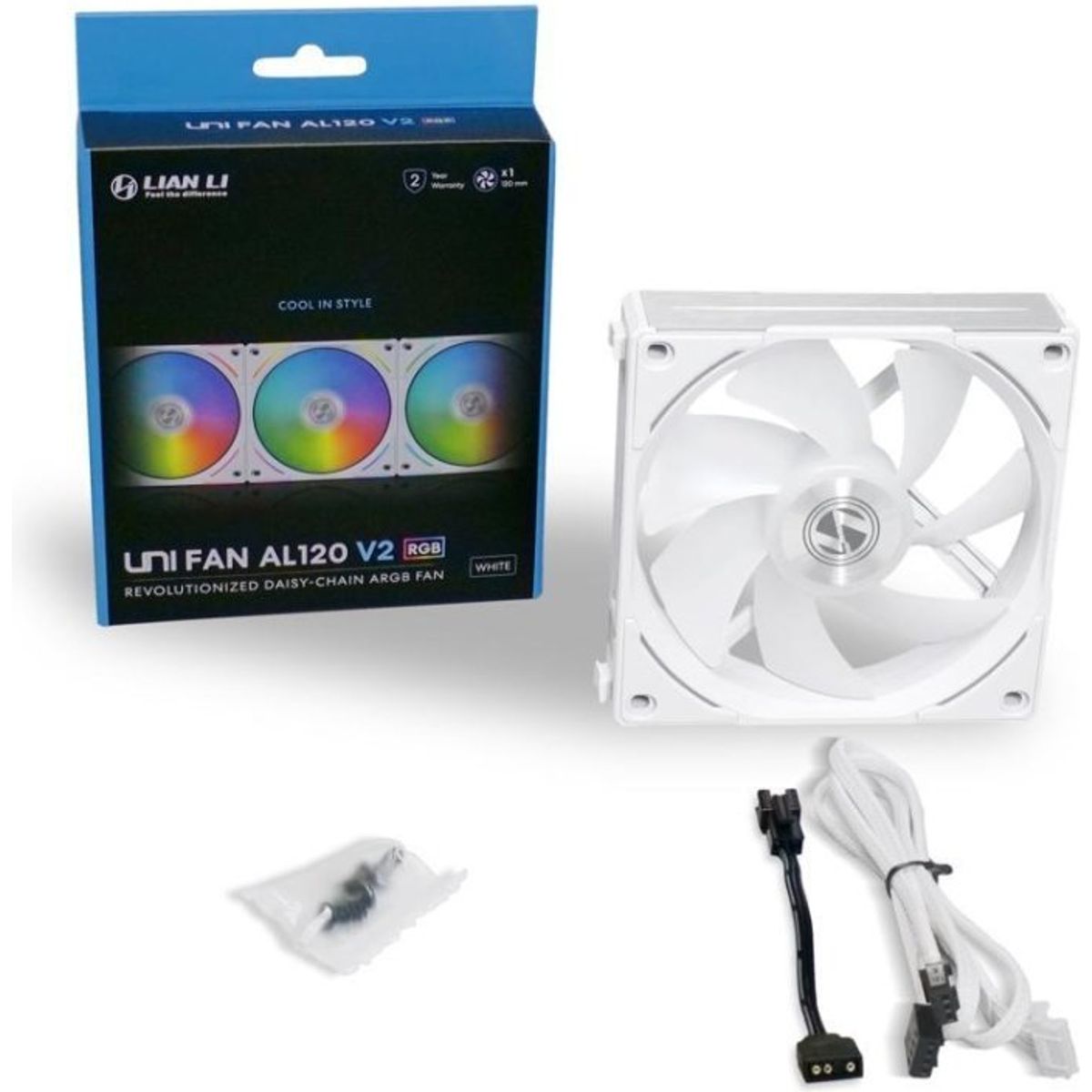

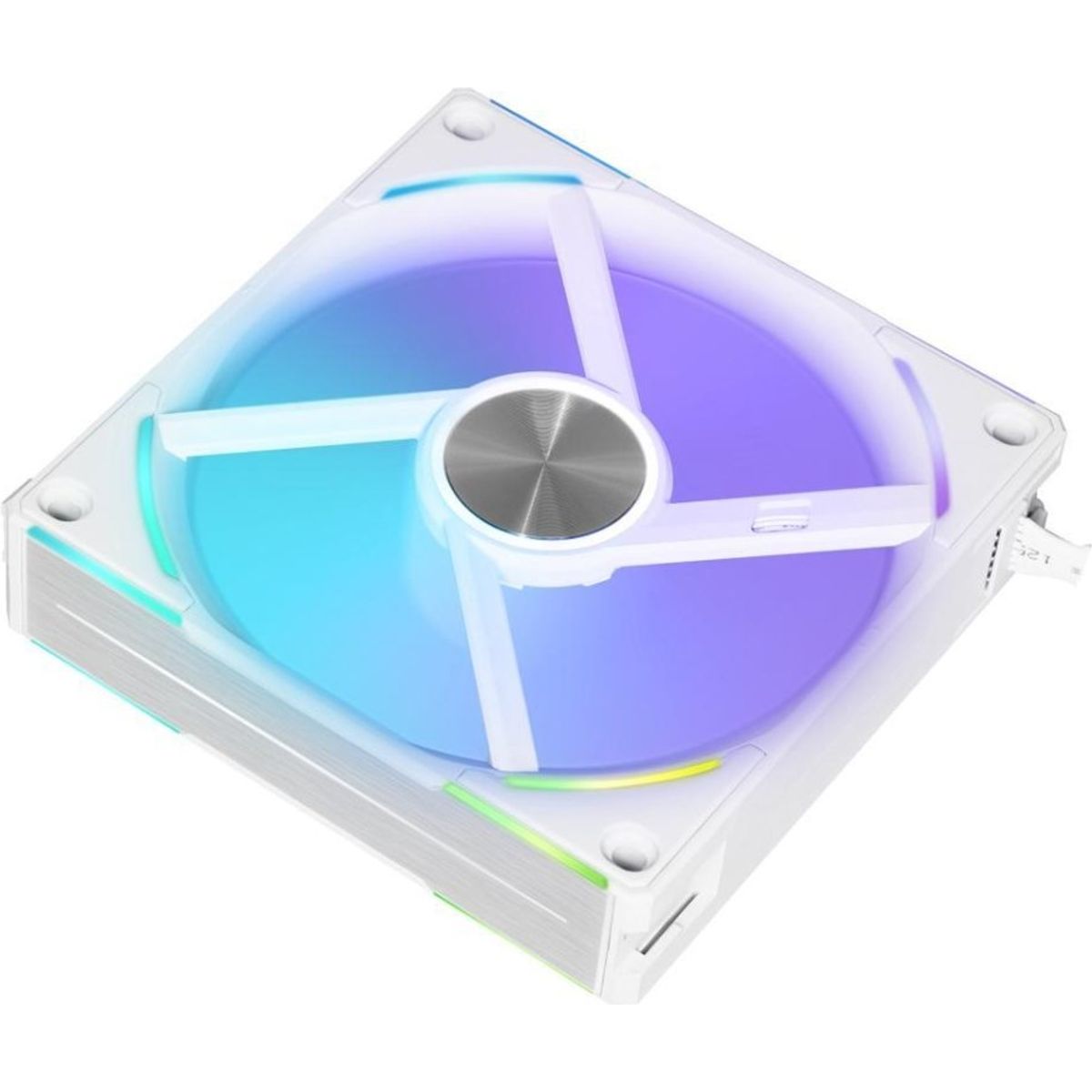

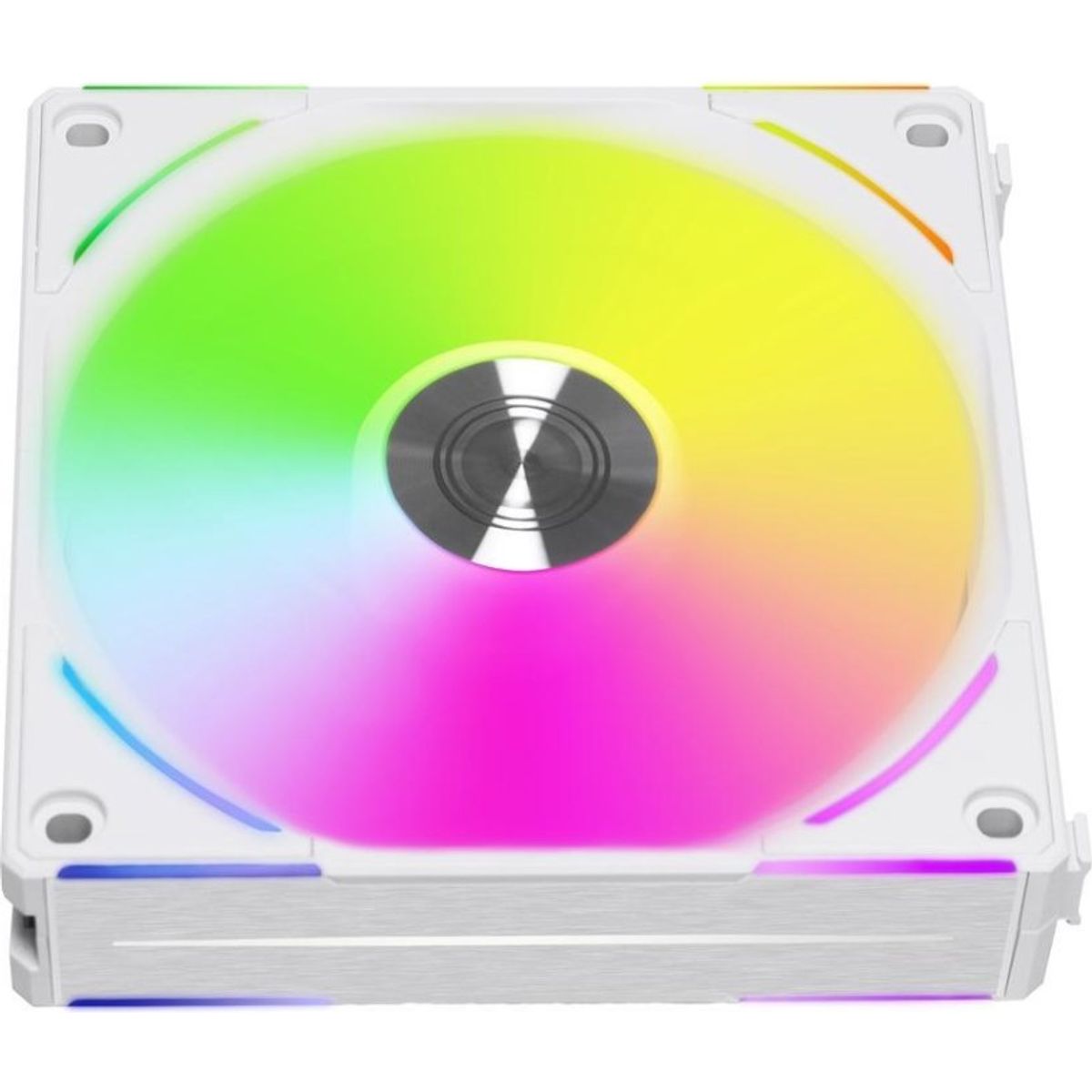

Lian Li UNI Fan AL120 v2 - WHITE - 1-pack

Lian Li UNI Fan AL120 v2 - WHITE - 1-pack

Regular price $16.99
Regular price $27.99 Sale price $16.99
Sale Sold out
Shipping calculated at checkout.

Lian Li UNI Fan AL120 v2 - White - 1-pack

  • Improved daisy chain design to connect 2 clusters of fans.
  • AL120 V2 fan frame thickness is 28mm to provide 20% improved airflow compared to V1.
  • Removable interlocking keys to provide better radiator clearance.
  • Start/stop fan RPM support for a quieter environment.
  • New corner lighting visible from all sides.
  • Only one cable is required for each fan cluster when using the provided new UNI HUB to control lighting effects via L-Connect 3.

UPGRADED MODULARITY

UNI FAN AL V2 features an interlocking system to connect up to 6 fans in two clusters to a single controller port, making fans installation and cable management a simple job.

THICKER YET EASY TO INSTALL

The UNI FAN AL120 V2 has been amended to a slightly thicker frame of 28mm, and implements indented screw holes to fit standard 25mm long screws for installation.

ULTIMATE PERFORMANCE ARGB FAN

Running at peak performance while keeping low noise levels, the UNI FAN AL120 V2 is the best-performing ARGB fan within the entire UNI FAN lineup.

DAZZLING FROM ALL ANGLES

UNI FAN ALV2 has comprehensive lighting all around with independent control of the effects at the fan blades and fan frame, and combined lighting effects.

SPECIFICATIONS

PRODUCT NAME UNI FAN AL120 V2 UNI FAN AL140 V2
MODEL AL120V2-3B AL120V2-3W AL120V2-1B AL120V2-1W AL140V2-1B AL140V2-1W
COLOR Black White Black White Black White
NUMBER OF FANS 3 3 1 1 1 1
CONTROLLER Yes No No
CONNECTOR TYPE 4 × 7-PIN
(Power Cable)
2 × Extension Cable
1 × 4-PIN PWM
+ 3-PIN SM Type
1 × ARGB MB Adaptor
1 × 4-PIN PWM
+ 3-PIN SM Type
1 × ARGB MB Adaptor
FAN DIMENSION 120 X 120 X 28 (mm) 140 X 140 X 25 (mm)
FAN SPEED 0, 250~2000 RPM 0, 250~1600 RPM
MAX. AIR PRESSURE 2.97 mmH2O (Maximum) 2.80 mmH2O (Maximum)
MAX. AIRFLOW 77.3 CFM (Maximum) 81.6 CFM (Maximum)
ACOUSTIC NOISE 28.7 dB(A) Max 26.8 dB(A) Max
MATERIAL PBT/PC/Aluminum)
RATED VOLTAGE DC 12V (FAN) & 5V (LED)
BEARING TYPE Fluid Dynamic Bearing (FDB)
OPERATE VOLTAGE DC12V & 5V
START-UP VOLTAGE ≦5V
INPUT POWER 7.2W 6.32W
WARRANTY 2 years
