Lian Li

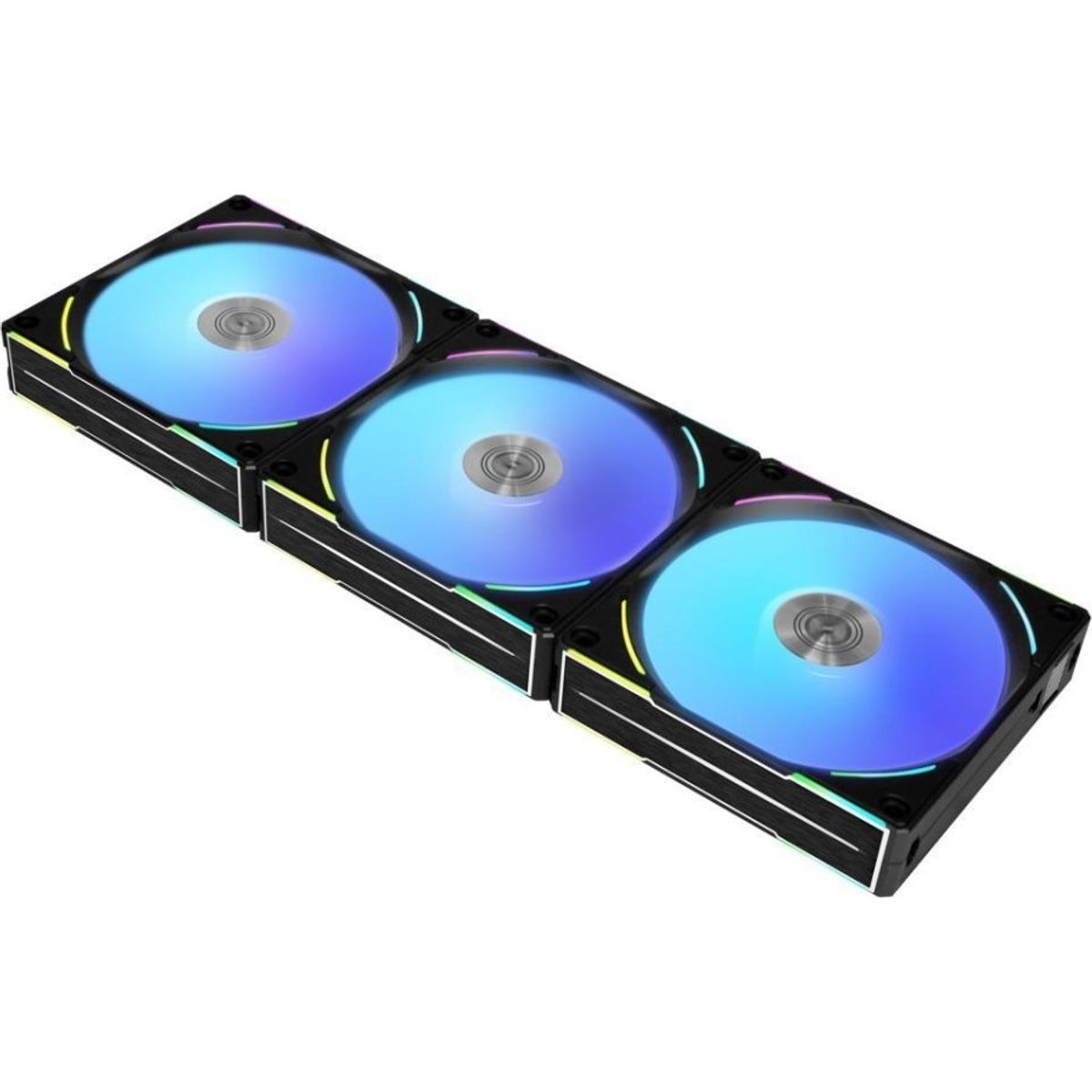

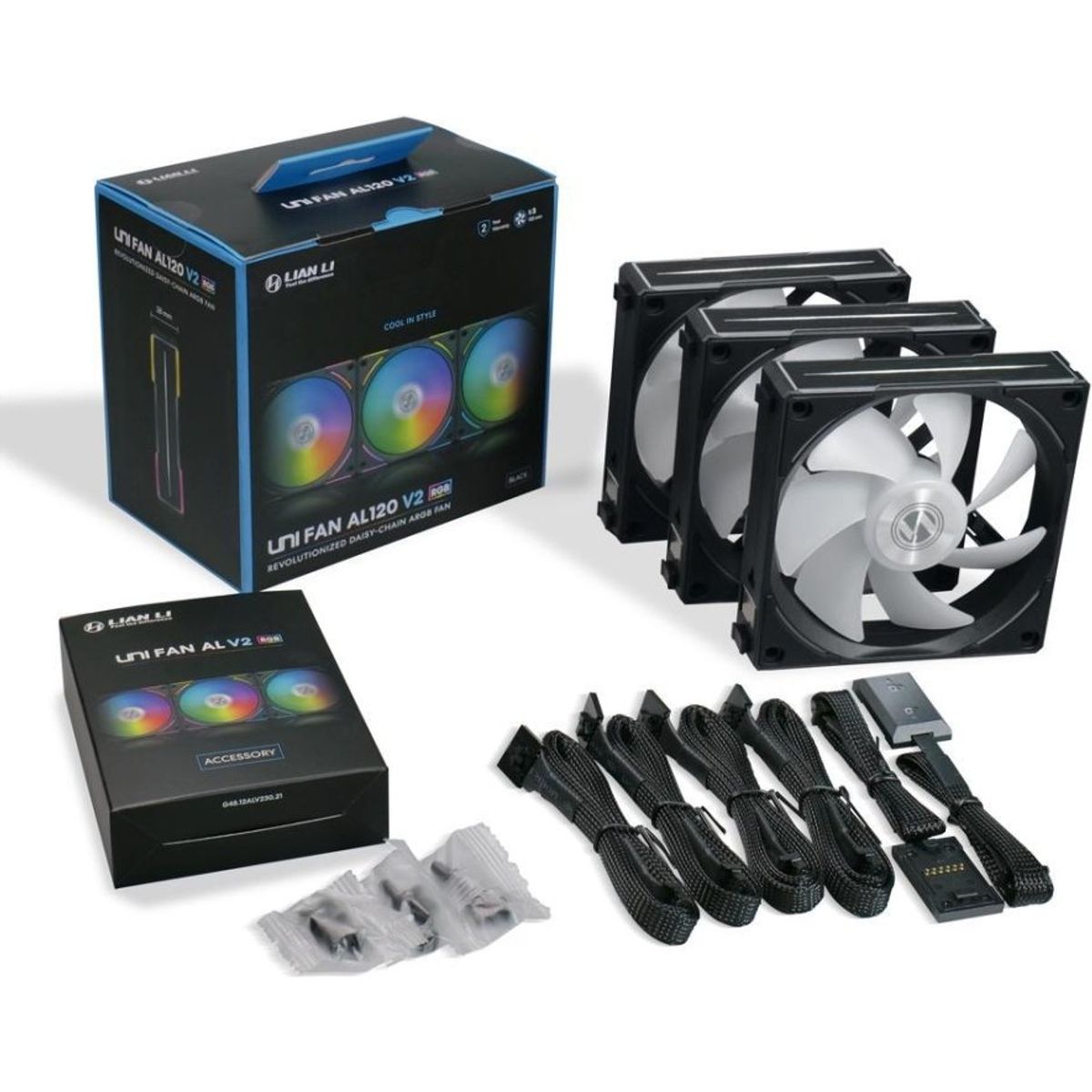

Lian Li UNI Fan AL120 v2 - BLACK - 3-pack & Controller
Lian Li UNI Fan AL120 v2 - BLACK - 3-pack & Controller
Regular price
$69.99
Regular price
$79.99
Sale price
$69.99
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Lian Li UNI Fan AL120 v2 - BLACK - 3-pack
- Improved daisy chain design to connect 2 clusters of fans.
- AL120 V2 fan frame thickness is 28mm to provide 20% improved airflow compared to V1.
- Removable interlocking keys to provide better radiator clearance.
- Start/stop fan RPM support for a quieter environment.
- New corner lighting visible from all sides.
- Only one cable is required for each fan cluster when using the provided new UNI HUB to control lighting effects via L-Connect 3.
UPGRADED MODULARITY
UNI FAN AL V2 features an interlocking system to connect up to 6 fans in two clusters to a single controller port, making fans installation and cable management a simple job.
THICKER YET EASY TO INSTALL
The UNI FAN AL120 V2 has been amended to a slightly thicker frame of 28mm, and implements indented screw holes to fit standard 25mm long screws for installation.
ULTIMATE PERFORMANCE ARGB FAN
Running at peak performance while keeping low noise levels, the UNI FAN AL120 V2 is the best-performing ARGB fan within the entire UNI FAN lineup.
DAZZLING FROM ALL ANGLES
UNI FAN ALV2 has comprehensive lighting all around with independent control of the effects at the fan blades and fan frame, and combined lighting effects.
SPECIFICATIONS
PRODUCT NAME | UNI FAN AL120 V2 | UNI FAN AL140 V2 | ||||||
---|---|---|---|---|---|---|---|---|
MODEL | AL120V2-3B | AL120V2-3W | AL120V2-1B | AL120V2-1W | AL140V2-1B | AL140V2-1W | ||
COLOR | Black | White | Black | White | Black | White | ||
NUMBER OF FANS | 3 | 3 | 1 | 1 | 1 | 1 | ||
CONTROLLER | Yes | No | No | |||||
CONNECTOR TYPE | 4 × 7-PIN (Power Cable) 2 × Extension Cable |
1 × 4-PIN PWM + 3-PIN SM Type 1 × ARGB MB Adaptor |
1 × 4-PIN PWM + 3-PIN SM Type 1 × ARGB MB Adaptor |
|||||
FAN DIMENSION | 120 X 120 X 28 (mm) | 140 X 140 X 25 (mm) | ||||||
FAN SPEED | 0, 250~2000 RPM | 0, 250~1600 RPM | ||||||
MAX. AIR PRESSURE | 2.97 mmH2O (Maximum) | 2.80 mmH2O (Maximum) | ||||||
MAX. AIRFLOW | 77.3 CFM (Maximum) | 81.6 CFM (Maximum) | ||||||
ACOUSTIC NOISE | 28.7 dB(A) Max | 26.8 dB(A) Max | ||||||
MATERIAL | PBT/PC/Aluminum) | |||||||
RATED VOLTAGE | DC 12V (FAN) & 5V (LED) | |||||||
BEARING TYPE | Fluid Dynamic Bearing (FDB) | |||||||
OPERATE VOLTAGE | DC12V & 5V | |||||||
START-UP VOLTAGE | ≦5V | |||||||
INPUT POWER | 7.2W | 6.32W | ||||||
WARRANTY | 2 years |
