Gigabyte
Gigabyte Gaming RX 7900 XTX 24GB AMD GPU
Couldn't load pickup availability
Radeon™ RX 7900 XTX GAMING OC 24G
KEY FEATURE
- Powered by Radeon™ RX 7900 XTX
- Integrated with 24GB GDDR6 384-bit memory interface
- WINDFORCE Cooling System
- RGB Fusion
- Dual BIOS

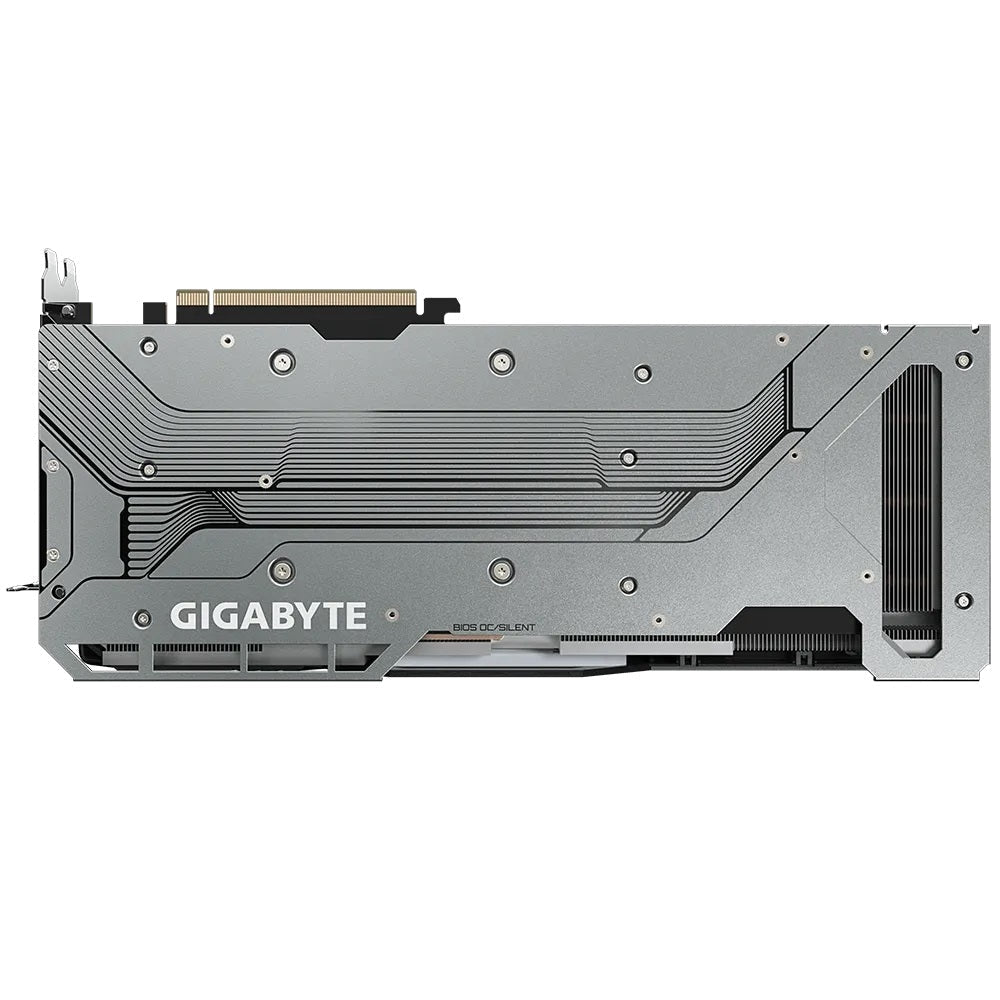

- Protection metal back plate
- Anti-sag bracket
THE MOST ADVANCED GRAHICS FOR GAMERS
Experienced unprecedented performance, visuals, and efficiency at 4K and beyond with AMD Radeon™ RX 7000 Series graphics cards, the world's first gaming GPUs powered by AND RDNA™ 3 chiplet technology. Immerse your self in breathtaking visuals with the pinpoint color accuracy of AMD Radiance Display™ Engine and boost frame rates with AMD fidelityFX™ Super Resolution and Radeon™ Super Resolution upscaling technologies. 1,2 To unlock even more performance, combine AMD Radeon™ RX 7000 Series graphics and compatible AMD Ryzen™ processors to activate AMD smart technologies.

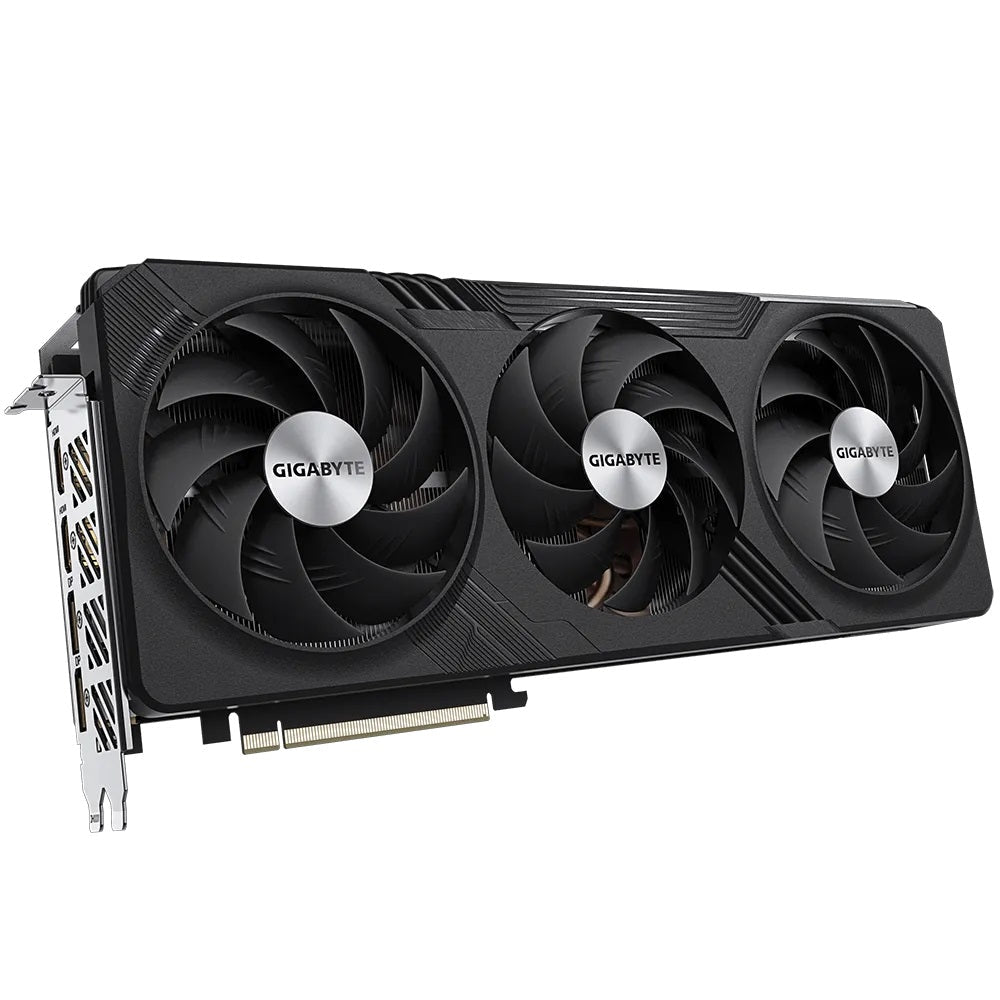

WINDFORCE COOLING SYSTEM
The WINDFORCE cooling system features three 100mm unique blade fans, alternate spinning, 9 composite copper heat pipes, a large vapor chamber directly touches the GPU, 3D active fans and Screen cooling, which together provide high efficiency heat dissipation.ALTERNATE SPINNING
Reduce the turbulence of adjacent fans and increase airflow pressure.
3D ACTIVE FAN
The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game.
The airflow is spilt by the triangular fan edge, and guided smoothly through the 3D stripe curve on the fan surface.
Graphene nano lubricant can extend the life of sleeve bearing fan by 2.1 times, close to the life of double ball bearing, and is quieter.
The large vapor chamber directly contacts the GPU, coupled with the composite heat pipes, which quickly transfers the heat of the GPU and VRAM to the heatsink.
Extended heatsink allows air to pass through, providing better heat dissipation.
With 16.7M customizable color options and numerous lighting effects, you can choose any lighting effect or synchronize with other devices in GIGABYTE CONTROL CENTER.
ULTRA DURABLE
Ultra Durable certified highest-grade metal chokes, lower ESR solid capacitors, 2oz copper PCB, and lower RDS(on) MOSFETs, plus over-temperature design to deliver superior performance and longer system life.
FRIENDLY PCB DESIGN
Fully automated production process ensures top quality of the circuit boards and eliminates sharp protrusions of the solder connectors seen on the conventional PCB surface. This friendly design prevents your hands from getting cut or inadvertently damaging components when making your build.
SPECIFICATIONS
- UPC: 889523035351
- MPN: GVR79XTXGAMINGO
- SKU: 529917
| Graphics Processing |
| Radeon™ RX 7900 XTX |
| Core Clock |
| Boost Clock* : up to 2525 MHz (Reference card: 2500 MHz) |
| Game Clock* : up to 2330 MHz (Reference card: 2300 MHz) |
| Stream Processors |
| 6144 |
| Memory Clock |
| 20 Gbps |
| Memory Size |
| 24 GB |
| Memory Type |
| GDDR6 |
| Memory Bus |
| 384 bit |
| Card Bus |
| PCI-E 4.0 |
| Digital max resolution |
| 7680x4320 |
| Multi-view |
| 4 |
| Card size |
| L=331 W=138 H=50 mm |
| PCB Form |
| ATX |
| DirectX |
| 12 Ultimate |
| OpenGL |
| 4.6 |
| Recommended PSU |
| 850W |
| Power Connectors |
| 8 Pin*2 |

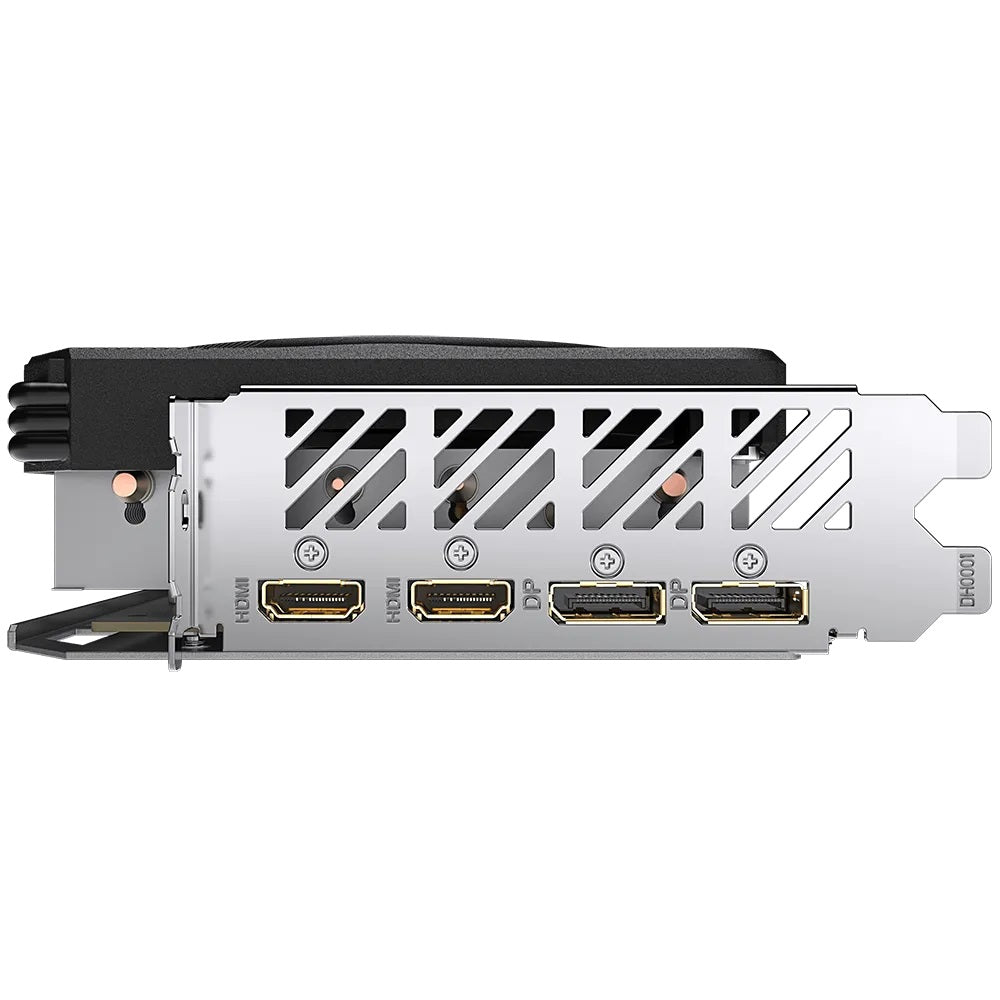

| Output |
| DisplayPort 2.1 *2 |
| HDMI 2.1 *2 |
| Accessories |
| 1. Quick guide |
| 2. Anti-sag bracket |
| 3. Anti-sag bracket installation guide |
