Asus

Asus ROG Strix X670E-I Gaming WiFi AMD AM5 Mini-iTX Motherboard

Regular price $459.99 USD
Regular price Sale price $459.99 USD
Shipping calculated at checkout.

Asus ROG Strix X670E-I Gaming WiFi AMD AM5 Mini-ATX Motherboard (90MB1B70-M0EAY0)

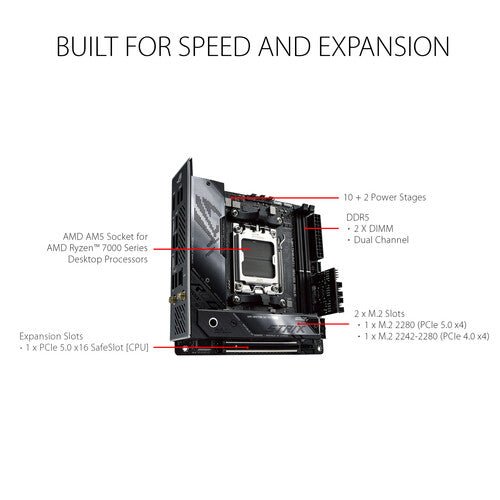

Experience high-end gaming with the ASUS Republic of Gamers STRIX X670E-I Gaming WIFI Mini-ITX Motherboard. This sleek RGB-enabled motherboard is ideal for the gamer who wishes to utilize gaming components in a small, compact case. The X670 chipset lays the groundwork for your components, starting with the AM5 socket, made for AMD's Ryzen 7000 Series desktop processors. With two SATA III, two M.2 slots, and two dual-channel DDR5 memory slots, you can enjoy fast load times and increased multitasking capabilities. The single PCIe 5.0 x16 slot is available for graphics and utility, such as sound and network cards. This motherboard connects to wireless networks using Wi-Fi 6E (802.11ax) technology, while Bluetooth 5.2 allows you to connect to wireless accessories. Additionally, several USB-C and USB-A ports are available for wired peripherals.

Features

AMD5 Socket
This motherboard is ready for AMD Ryzen 7000 Series Desktop Processors.

Enhanced Power Solution

Get stable power delivery, thanks to 10 + 2 power stages with ProCool II power connector, high-quality alloy chokes, and durable
capacitors.

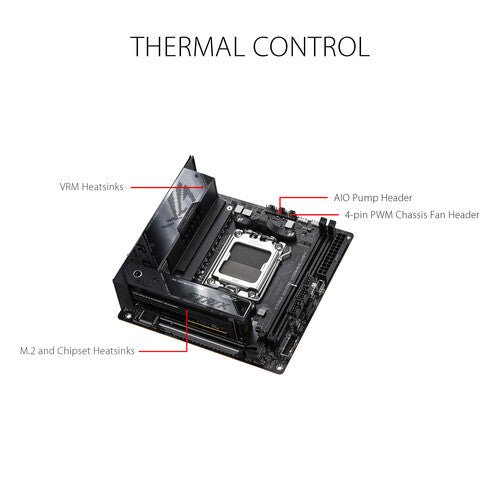

Optimized Thermal Design

The motherboard has an active VRM Heatsink with high conductivity thermal pads and an M.2 Gen 5 and Chipset Heat Sink.

Overclocking Technologies

There are OC technologies, such as Dynamic OC Switcher, Ryzen Core Flex, and PBO Enhancement.

Made for Online Gaming

Play online with no lag, thanks to Intel 2.5 Gb Ethernet, Wi-Fi 6E, and ASUS LANGuard.

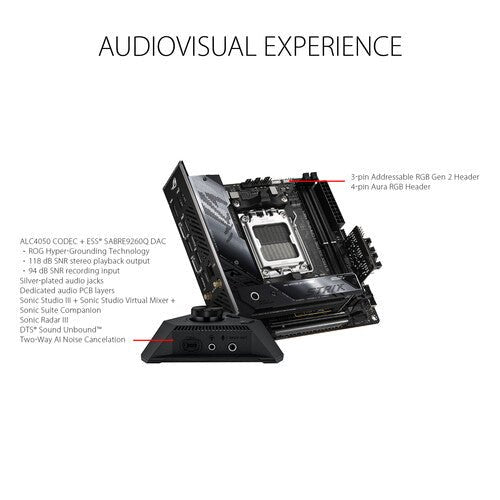

Audio

Get an immersive audio experience with the ROG Strix Hive external audio solution with Realtek ALC4050 codec and ESS SABRE 9260Q DAC, along with DTS Sound Unbound and Sonic Studio III.

RGB Lighting

Customize your gaming setup with the ASUS-exclusive Aura Sync RGB lighting, including one RGB header and one addressable Gen 2 RGB header.

DIY-Friendly Design

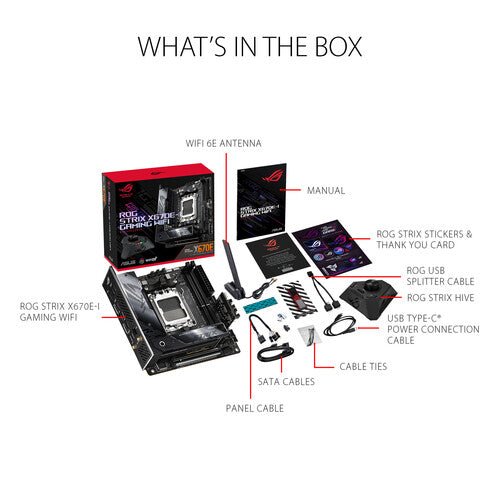

The motherboard features a bundled ROG FPS-II Card and ROG Strix Hive, EZ mode PBO button, M.2 Q-Latch, pre-mounted I/O shield, and BIOS FlashBack button.

Intelligent Control

The motherboard features ASUS-exclusive tools, including AI Cooling II, Two-Way AI Noise-Cancelation, and AI Networking for easy configuration.


ASUS X670E-I Gaming WIFI Specs

CPU

Chipset AMD X670
CPU Socket AM5

Back Panel I/O

USB 2 x USB-C (USB4)
5 x USB-A (USB 3.1/3.2 Gen 2)
3 x USB-A (USB 2.0)
Thunderbolt None
Display 1 x HDMI
Audio 5 x 1/8" / 3.5 mm
1 x S/PDIF
Ethernet / Controller 1 x Intel I225-V 2.5Gigabit
Wi-Fi Antenna 1 x Connector
Buttons BIOS Flashback

Memory

Memory Slots 2 x 288-Pin
Memory Support DDR5 4800, 5000, 5200, 5400, 5600, 5800, 6000, 6400 MHz
Maximum Capacity 64 GB
Channel Architecture Dual Channel
ECC Support Non-ECC, ECC Unbuffered

Storage Expansion

SATA 2 x SATA III
M.2 1 x M Key 2280 (PCIe 5.0 x4)
1 x M Key 2242, 2260, 2280 (PCIe 4.0 x4)
Optane Memory Support No
RAID Support None

Internal I/O

Expansion Slots 1 x PCIe 5.0 x16
USB 1 x 3.2 Gen 2x2 Header (Supports 1 USB-C Port)
1 x 3.0 / 3.1/3.2 Gen 1 Header (Supports 2 USB-A Port)
2 x 2.0 Header (Supports 4 USB-A Port)
Air Cooling 1 x 4-Pin CPU
1 x 4-Pin System
Liquid Cooling 1 x 4-Pin Pump
Power Connectors 1 x 24-Pin Mainboard
1 x 8-Pin CPU
Security Chassis Intrusion
LED Header 2 x RGB
Audio None
Diagnostics Clear CMOS

BIOS

ROM 256 Mb

Front Panel I/O

I/O Connection Headers USB 3.0 / 3.1/3.2 Gen 1, USB 3.1/3.2 Gen 2

Audio

Audio Codec SupremeFX (7.1-Channel)

Wireless

Bluetooth 5.2
Wi-Fi Wi-Fi 6E (802.11ax) with MU-MIMO Support
