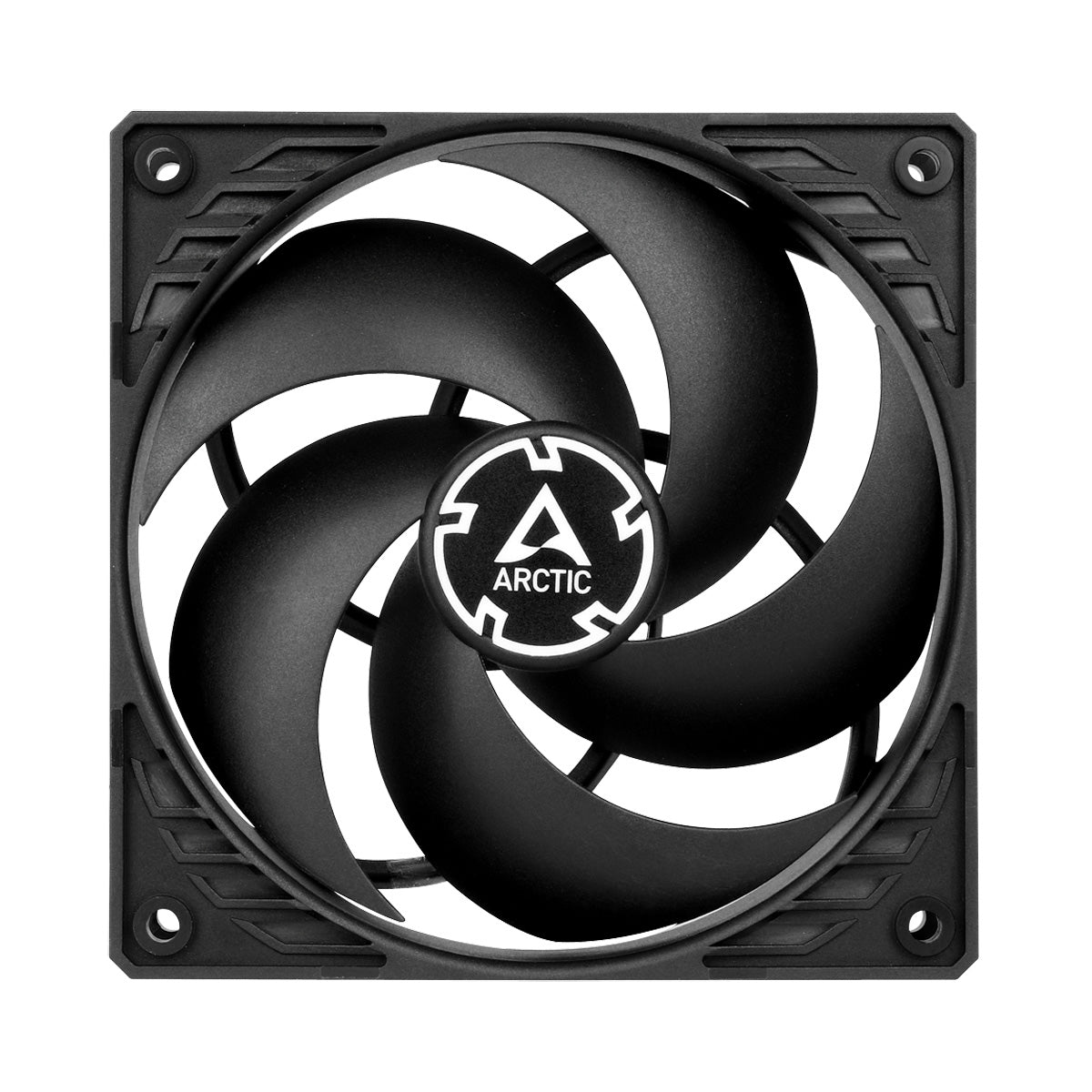

ARCTIC P12 120mm Fan - PWM PST CO - BLACK
Couldn't load pickup availability

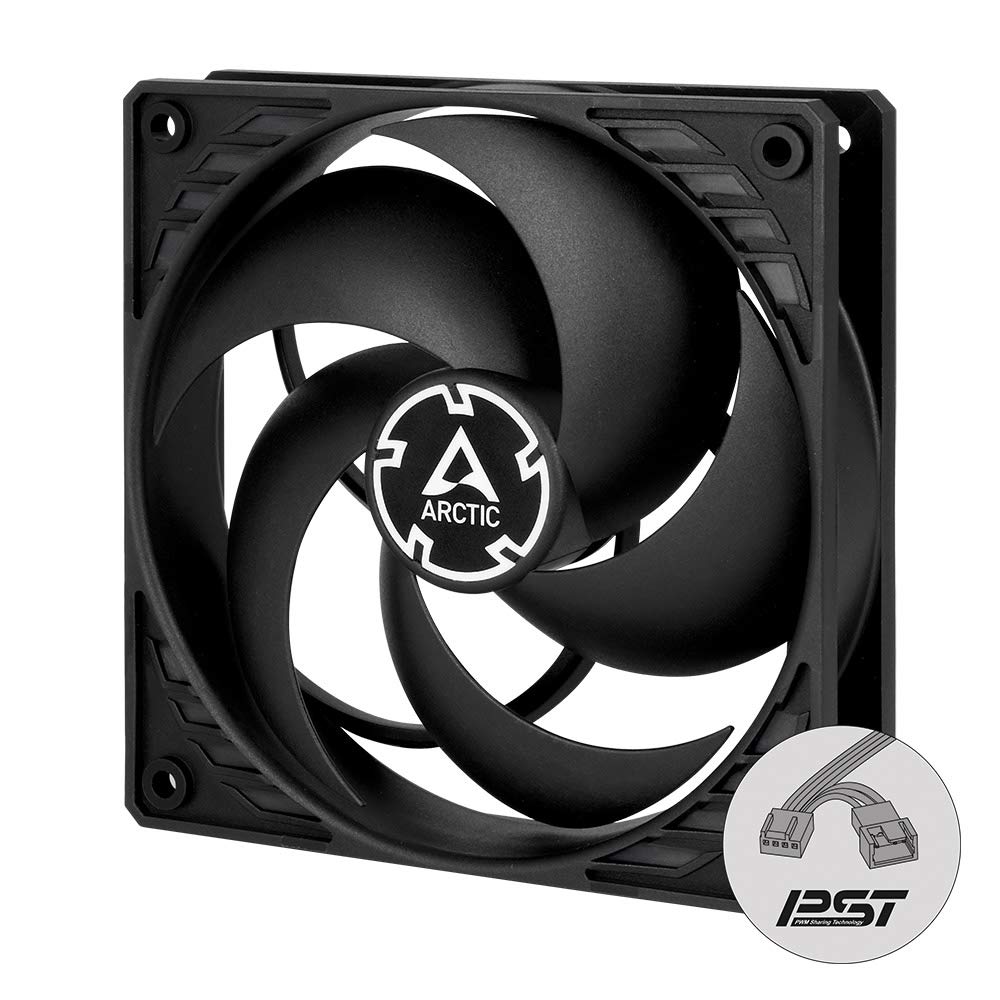

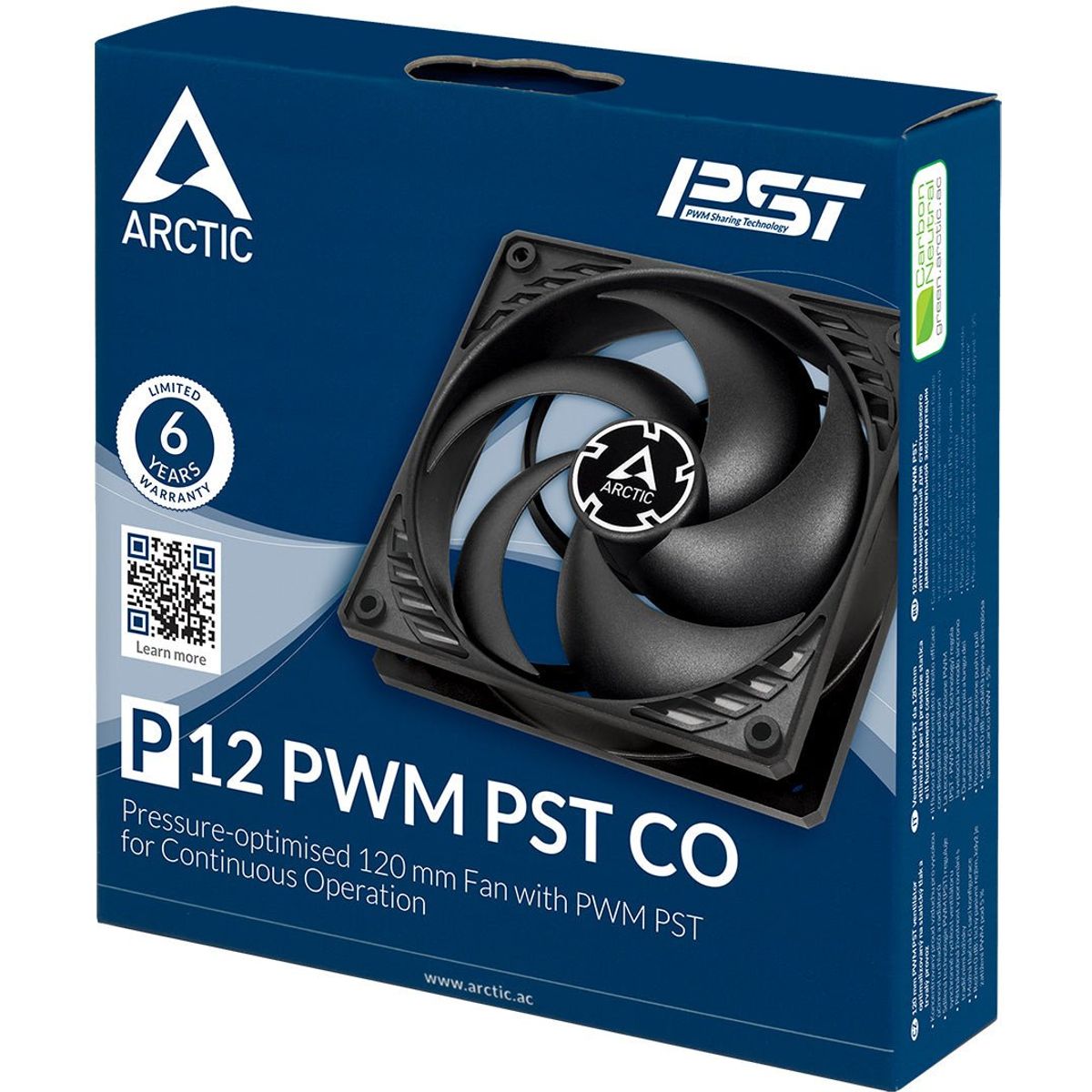

ARCTIC P12 PWM PST CO -120 mm - Black

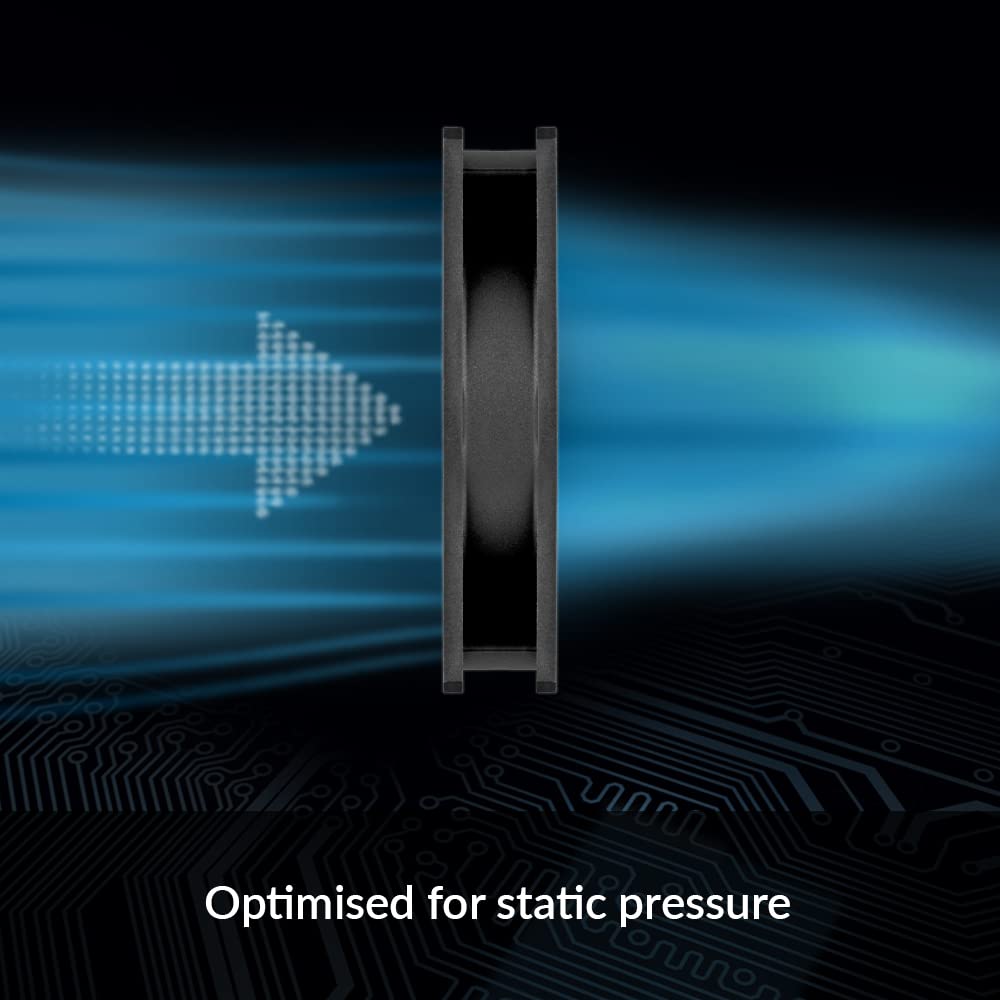

Optimized for Static Pressure
During the development of the new P12 PWM PST CO, special emphasis was placed on a focused airstream and thus a high static pressure. The fan guarantees extremely efficient cooling, even with increased air resistance. Therefore, the P12 PWM PST CO is particularly suitable for use on heatsinks and radiators.
Strong Cooling Performance

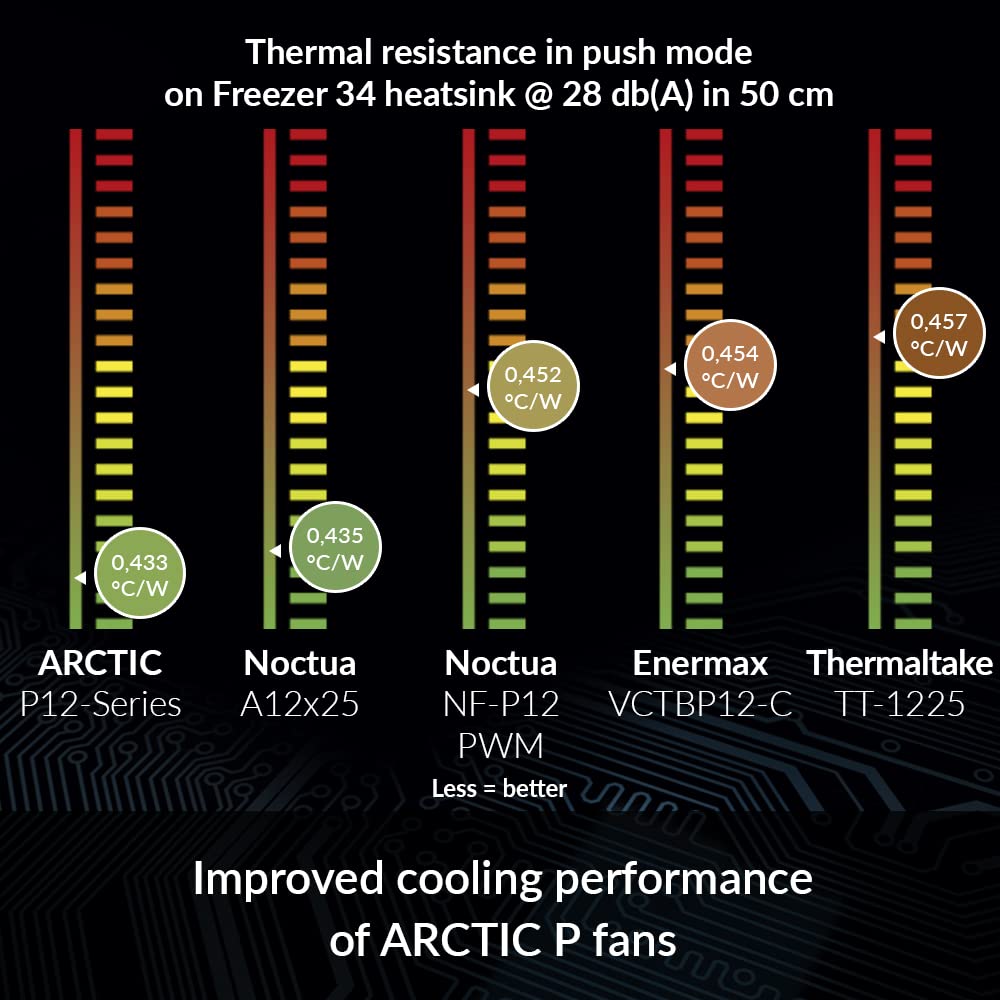

Numerous improvements, such as updated engine technology and a newly developed fan design, have noticeably increased the performance of P-fans. In internal performance tests leveled to 28 dB (A), the new P-fans left many competitors behind.
More Efficient Technology

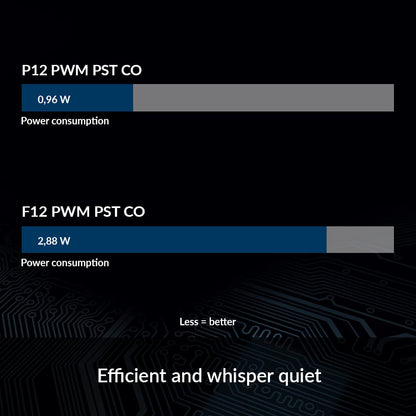

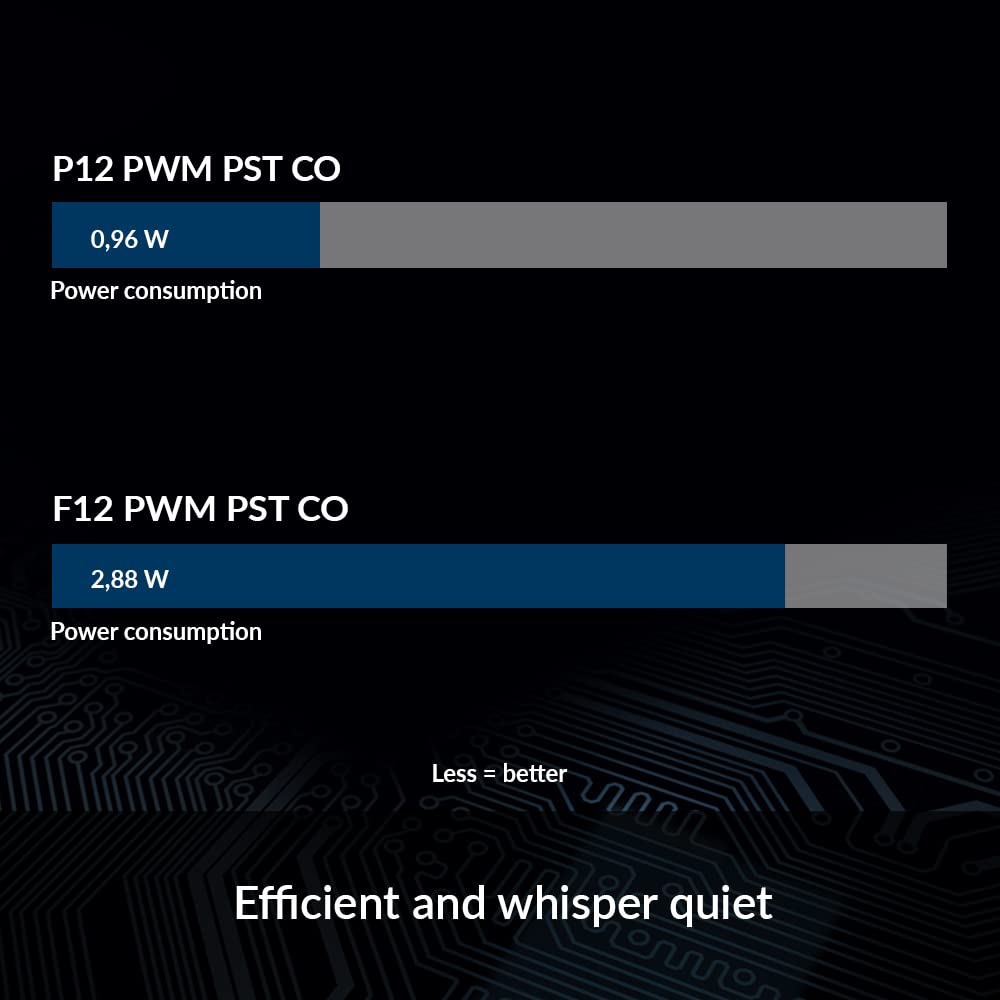

The motor is powered by a PWM IC of the newest generation, which allows the new P12 PWM PST CO to run much more efficiently than its predecessors. This saves energy without compromising performance.

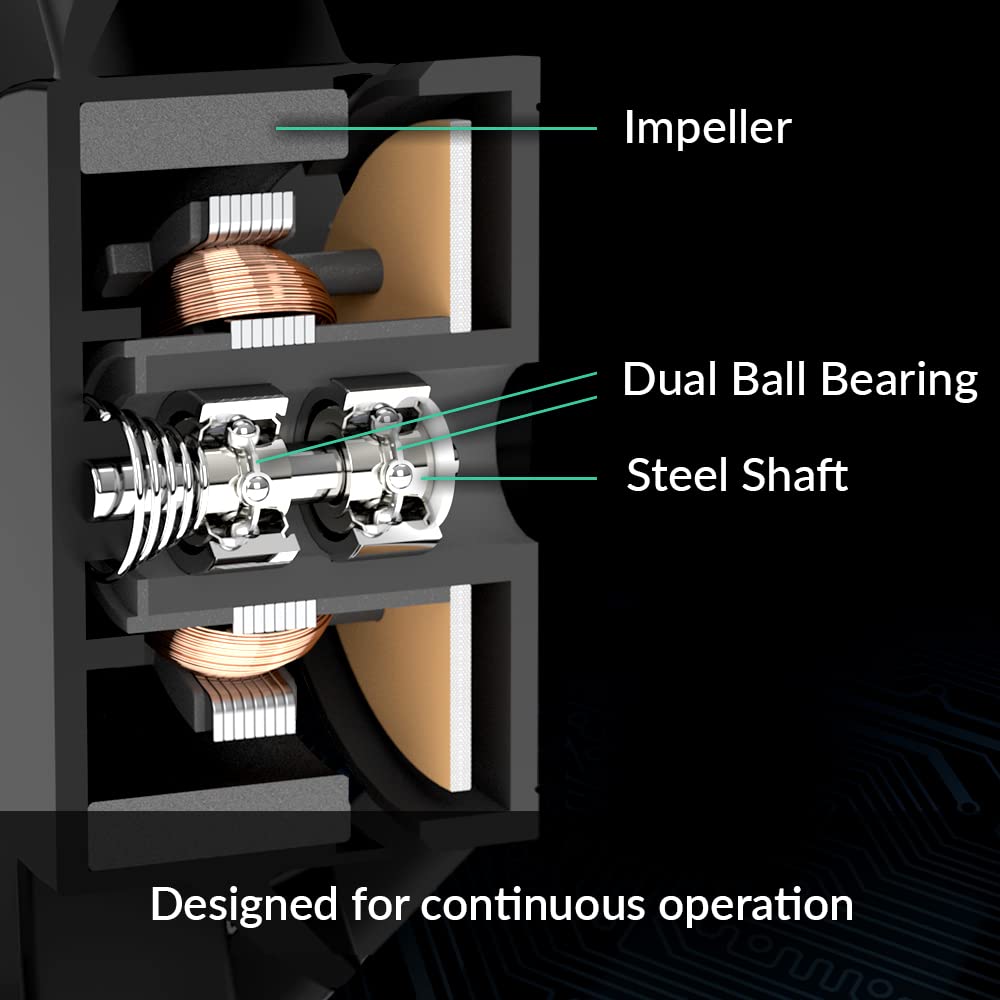

For Continuous Operation
The premium quality Japanese dual ball bearing allows continuous operation 24/7 without the slightest compromise in performance. Dust and high temperature are affecting this bearing a lot less than generic sleeve or one-ball bearings and thus make it the perfect choice when reliability is essential.
Maximum Quietness, Minimum Vibration
Even at low speeds, the operating sound of the new ARCTIC motor is barely noticeable. Due to sinus-magnetizing the new motor only creates about 5 % of the vibration from commutation of a regular DC motor without a filter. Consequently, there is no need for rubber spacers due to the steady and smooth torque of the new motor.

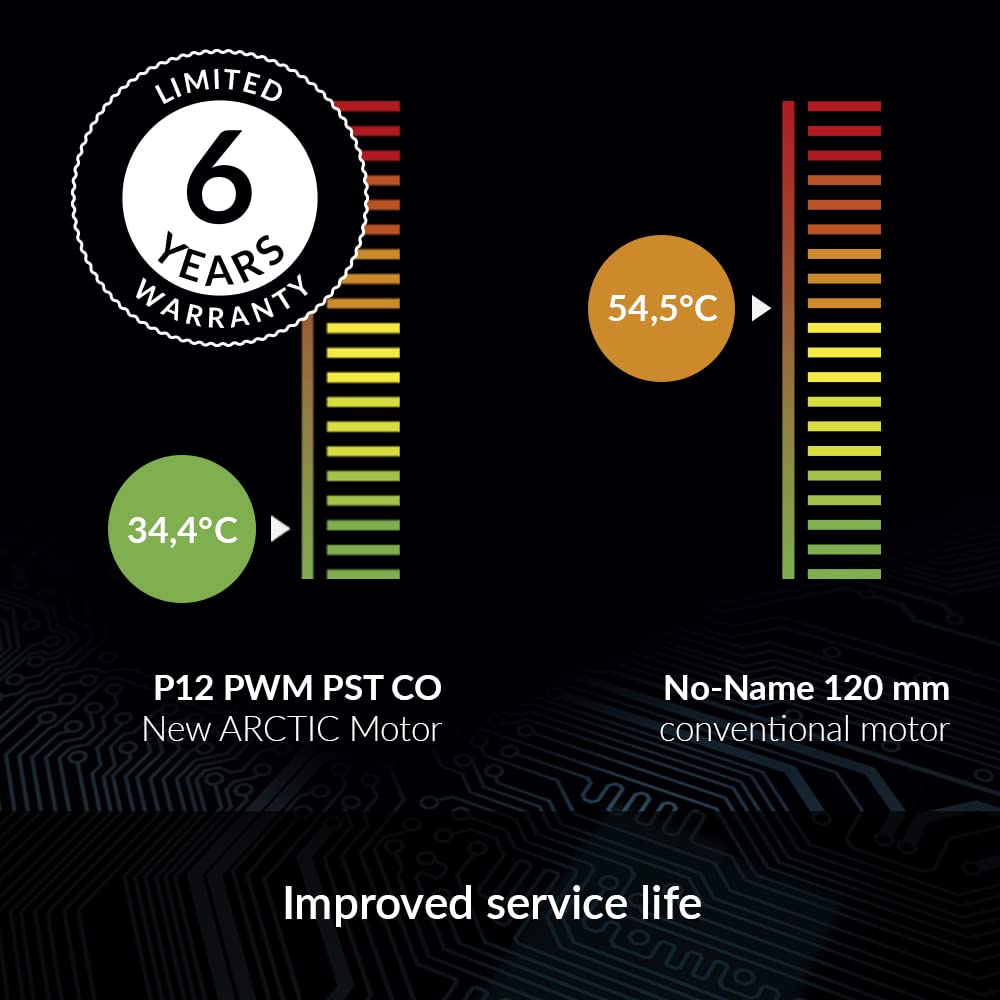

Extended Life Span
A 10 °C lower motor temperature roughly doubles the life span of a fan. The new ARCTIC motor has a four times longer service life through its low coil temperature. Consequently, we give a manufacturer warranty of 6 years.
200 to 1800 RPM regulated via PWM
With a wide range of regulations and the PWM Sharing Technology (PST), the P12 PWM PST CO fan speed can be controlled synchronously with all your other fans together. This keeps noise at a minimum while guaranteeing maximum cooling performance when needed.

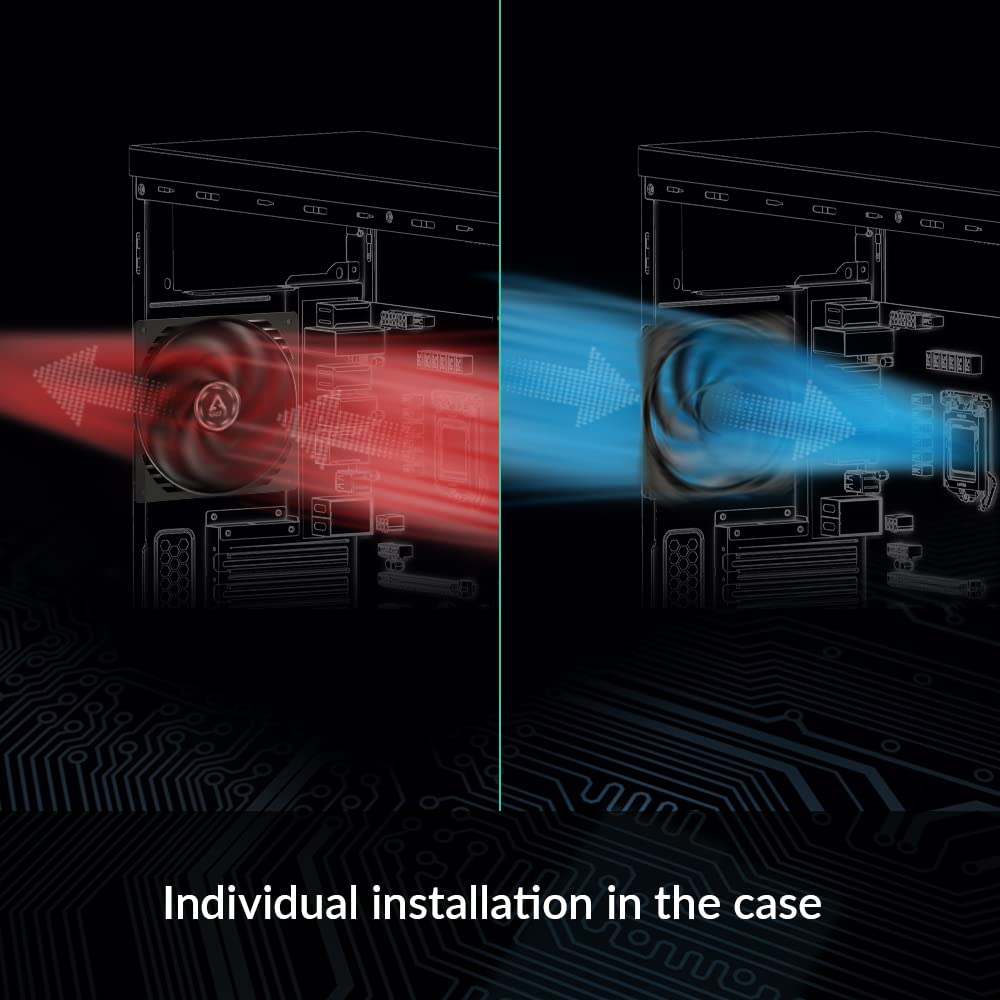

Two Way Installation
- Push warm air out of the case
- Pull cool air into your case

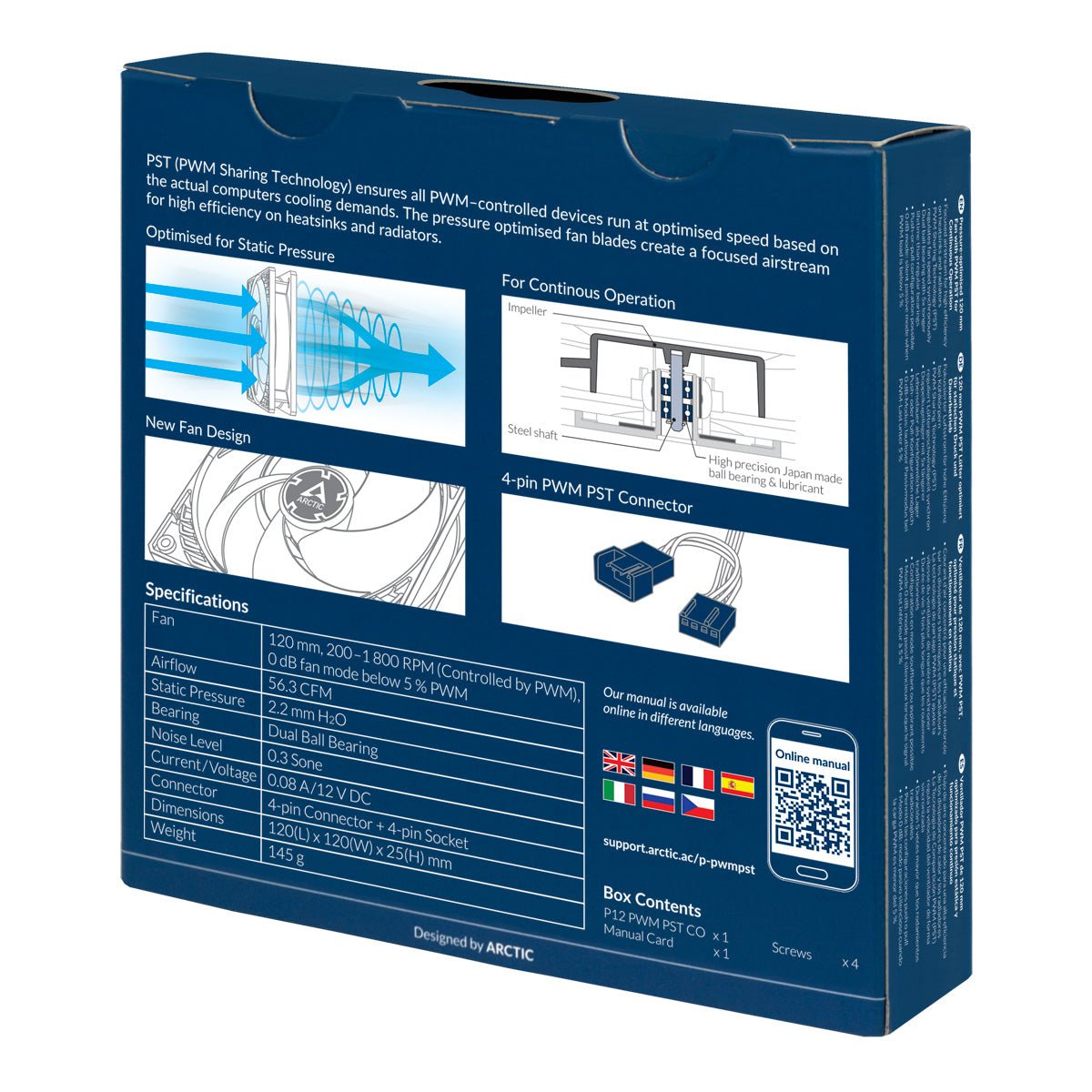

Specs
Performance
Fan Speed: 200-1800 RPM
Airflow: 56.3 CFM/95.7 m³/h
Static Pressure: 2.20 mm H₂O
Noise Level: 0.3 Sone
Operating Temperature: 0 - 40 °C
Fan
- Fan Frame: Standard
- Control Type: PWM PST
- Connector: 4-Pin-Connector + 4-Pin-Socket
- Fan Bearing: Dual Ball Bearing
Electric Characteristics
- Typical Voltage: 12 V DC
- Starting Voltage: 3.9 V
- Current/Voltage: 0.1 A/12 V
- Cable Length: 400 mm
MPN ACFAN00121A
